Name: | 80W mono solar Narrow Boat Kit |
---|---|
Model No.: | BSNBK80M |
Dimensions: | 100mm x 520mm x 35mm |
Weight: | 10.0 kg |
Open Circuit Voltage: | 21.5V |
Short Circuit Current: | 5.10A |
Max Power Voltage: | 17.6V |
Max System Current: | 4.58 A |
Max System Voltage: | 800VDC |
Number of Cells: | 36 |
Power Allowance Range: | 3 |
Operating Temperature: | -40~+85°C |
Connection+Cable: | MC4, 4mm², 900mm |
Standard Test Conditions (STC): | AM1.5, 1000W/m², Cells Temperature 25°C |
Product Description
Description
The 80 Watt Slim Mono Narrow Boat Kit is ideal for use on decktops and where the time spent away from a mains hook up is no more than 7 days. Also useful for charging more power hungry consumer appliances such lap top computers, TV’s and much more.

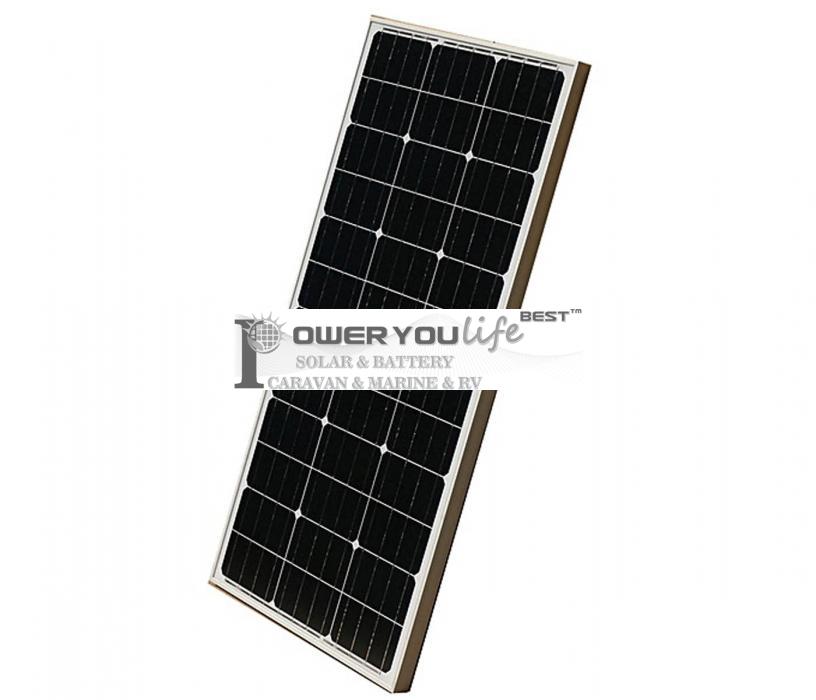

The 80 watt Mono panel provides a continuous trickle feed maintaining and extending the life of any 12 volt battery.
The 80 watt Mono solar panel is supplied with all the necessary cable (5m), connectors, detailed installation instructions

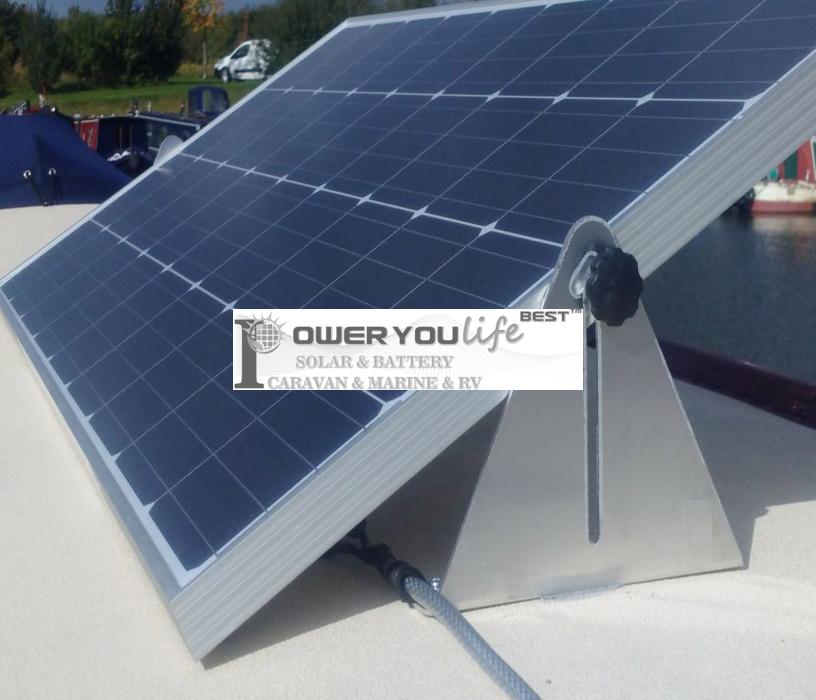

Also included in this kit is a Narrow Boat bracket system that will let you change the position of the solar panel to optomise your charging.
The 10Ah Charge controller is included with this kit to protect the battery from being overcharged and to prevent reverse current drain.
Approx. watt-hours/day**480W
Approx. amp-hours/day** 27.9A
** Based on 6 hours of average daily peak sunlight hours
Kit Includes
1 x KL80W-36M-S– 80wp solar panel slim design
1 x – 10Ah charge controller
1 x 5m Cable Bundle (each panel)

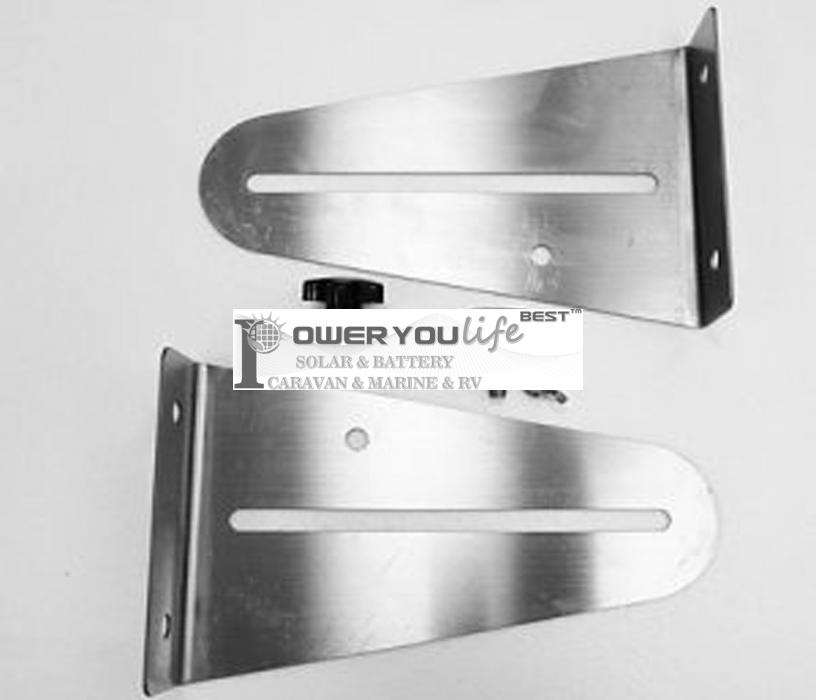

1 x Multi angle / direction roof top brackets
1 x BS-ENTRY-SLW – Single Cable Feed Gland
1 x Tube ISR Bonding Agent
1 x Pack fuses, ring terminals etc
1 x Fitting Instructions
Key Features
High efficiency crystalline cell for “all weather” charging
Water resistant, robust construction for outdoor use.
Adjustable angle Narrow boat bracket
20 year cell warranty and 10 year module warranty**
**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years
