Product Center

Name:10W 12V mono solar panel
Model No.:KL10W-36M
Dimensions:335mm x 280mm x 25mm
Weight:1.3kg
Open Circuit Voltage:21.6V
Short Circuit Current:0.66A
Max Power Voltage:16.96V
Max System Current:0.5A
Max System Voltage:300VDC
Number of Cells:36
Power Allowance Range:5
Operating Temperature:-40~+85°C
Connection+Cable:No cable
Standard Test Conditions (STC):AM1.5, 1000W/m², Cells Temperature 25°C

Product Description

Small, compact, all weather this 12v 10w Solar Panel is built to high standards.

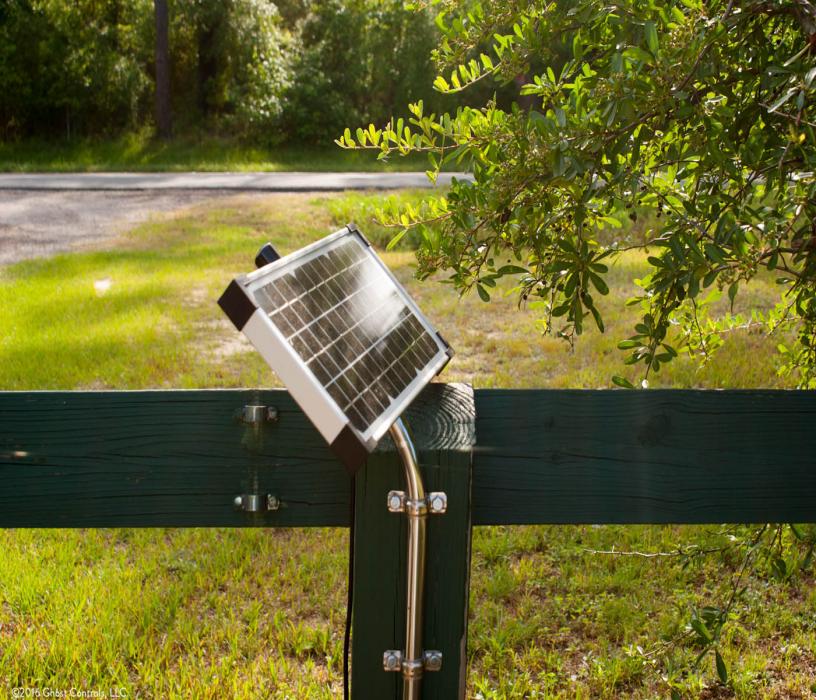

An ideal panel for steady battery charging and maintenance or your small off grid lighting project. This high quality 12v 10w Solar Panel works in both sunny and overcast conditions and is fully weatherproof.

it could comes supplied with 1/2/5 meters of cable, a blocking diode to prevent reverse charging and crocodile clips for easy battery connection.



Top Material

10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output


High-quality

TUV,CE,RoHS ISO certificated

High conversion efficiency

Low power tolerance of 0~+3% ;Low degradation under light exposure ;Can withstand high wind-pressure,snow load and extreme temperature ;Product Passing below test

IEC/EN 61215:2005;

IEC/EN 61730-1 A2

IEC/EN 61730-2 A1
