Name:Single arm pole mount for 30-60W Solar Panel
Model No.:BS-SA560
Mounts pole:2in to 4in
Fits modules:30 - 60 watt
Max. module width:560mm(22 in).
Tilt range:15 - 65 degrees
Material:aluminum
Weight:1.5kg(3.3lb)
Warranty:5 years

Product Description

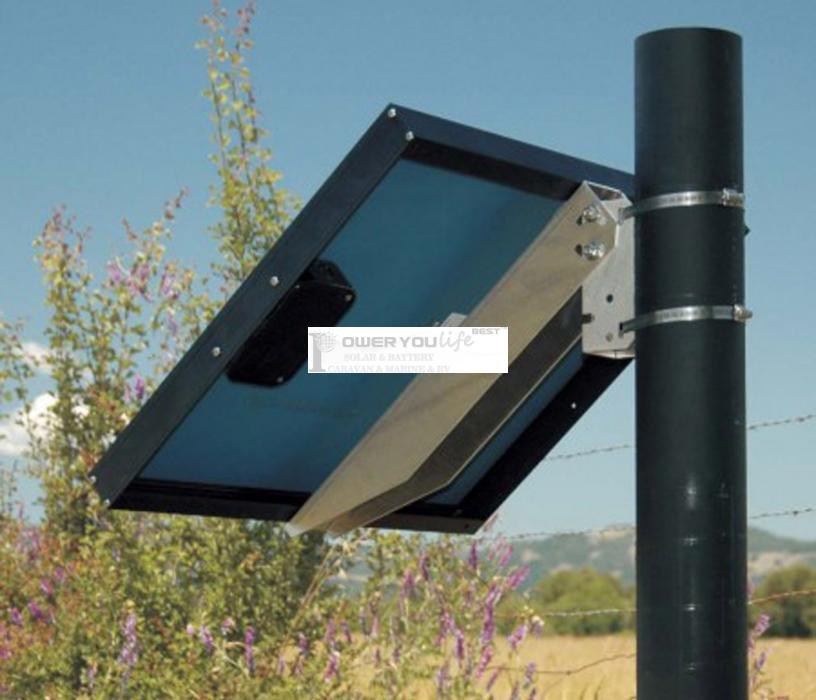

 Universal Single Arm Solar Panel Pole Mount for 30W to 60Watt

These low-cost, universal side-of-pole mounts is a simple and straightforward pole mounting solution for small area solar photovoltaic (PV) needs. it hold a single small module. Their unique module clamp-and-slot combination eliminates the need for bolt holes in the module by clamping to the inside of the module frame. Mounts have a fully adjustable tilt angle mechanism which can be set for maximum solar panel efficiency depending on your location and the season.

The mount accommodates solar panels to 560mm (22 inches) width

Pole not provided

Solar Panel not included
