Name:Large Solar Pole Mount for 50-130W panel
Model No.:BS-SA3
Mounts pole:2in to 4in
Fits modules:50 - 130 watt
Color:Siliver
Tilt range:10 - 65 degrees
Material:aluminum
Weight:2.0kg(4.4lb)
Warranty:5 years

Product Description

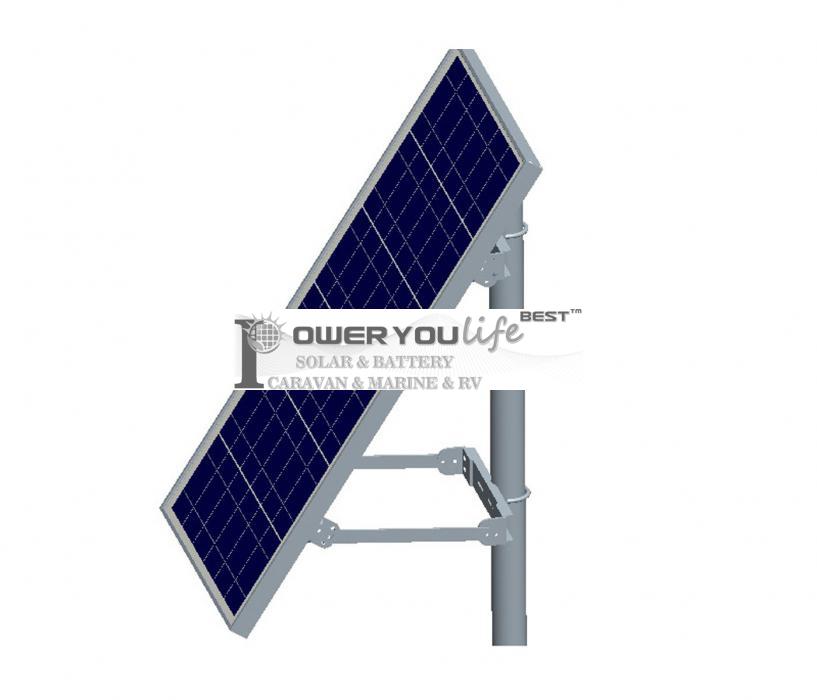

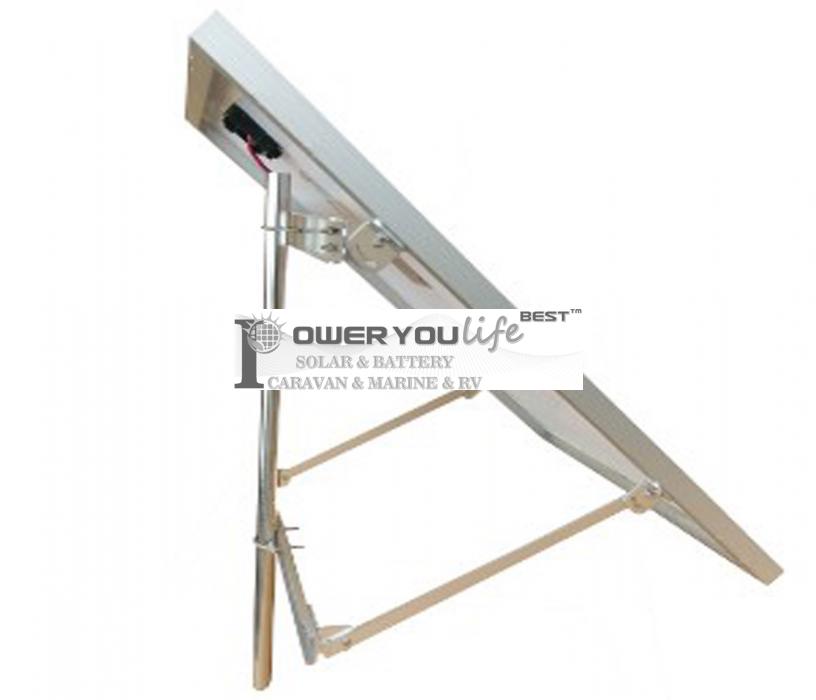

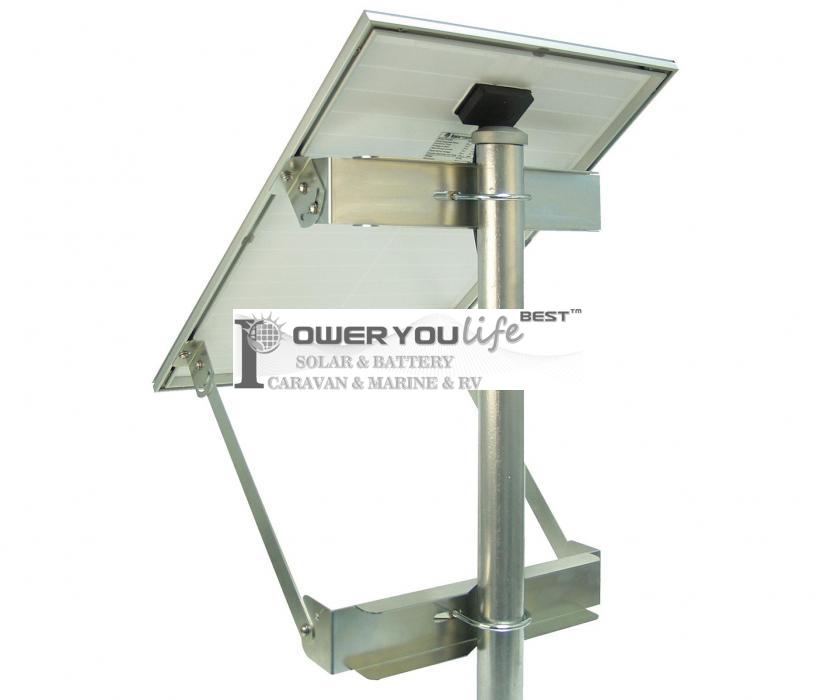

The large solar panel pole mount is idea suitable for 50w-130w solar panels

Our off-the-shelf, large pole mount is a variable angle pole mount system suitable for trees, lamp posts, signposts and anything that's pole-like!

This pole mount has fully adjustable angle settings and can support installations in a wide range of locations.

A sturdy aluminium frame, fully adjustable angled brackets, combined with a couple of steel D clips allows this to mount any small sized 12V panel.

If you need a larger bespoke pole mount, for panels larger than 130W, then please take a look at our other bespoke pole mount option .

Suitable for panels up to 635mm wide and poles of  50mm – 115mm diameter

Pole not provided

Solar Panel not included
