Name: | 50 Watt poly Solar Rooftop Kit with Premium fitting |
---|---|
Model No.: | BSRTK60P |
Dimensions: | 670mm x 540mm x 35mm |
Weight: | 4.2 kg |
Open Circuit Voltage: | 22.7V |
Short Circuit Current: | 3.14A |
Max Power Voltage: | 17.6V |
Max System Current: | 2.84A |
Max System Voltage: | 600VDC |
Number of Cells: | 36 |
Power Allowance Range: | 3 |
Operating Temperature: | -40~+85°C |
Connection+Cable: | MC4, 4mm², 900mm |
Standard Test Conditions (STC): | AM1.5, 1000W/m², Cells Temperature 25°C |
Product Description
Discription

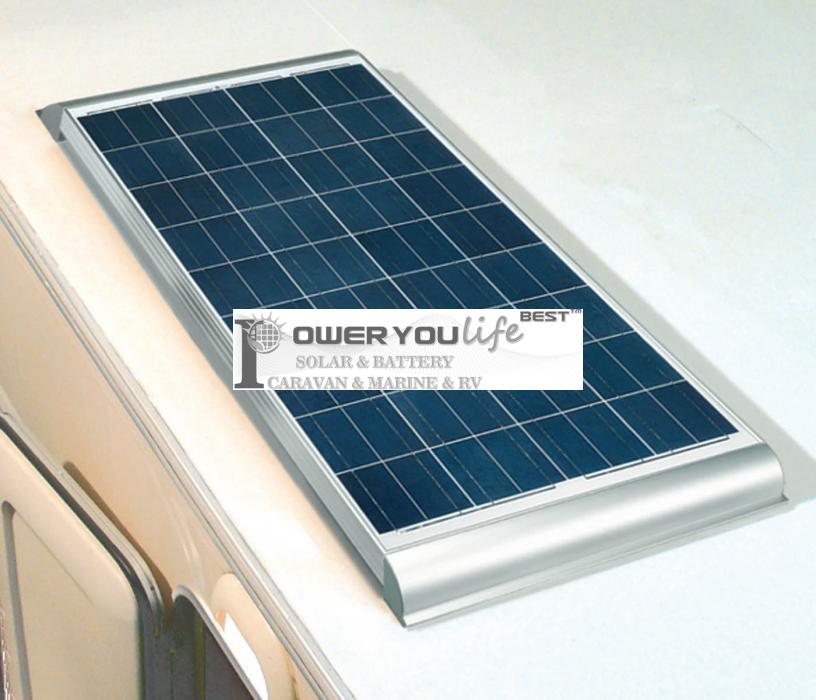

The 50 Watt Poly Solar Rooftop Kit is ideal for use on small / medium sized caravans and motor homes where power consumption is mainly limited to running the interior lights and water pump and / or use will only be during Spring, Summer and Autumn.
High efficiency crystalline cell for “all weather” charging
Perfect for TV operation, 240v appliances* and for permanent fitting
Water resistant, robust construction for outdoor use.
20 year cell warranty and 10 year module warranty**
You have three options on this Kit.
Standard Metal Brackets for mounting the panel to the roof (Roof space needed = 770 x 540 x 50mm)
Premium profile Fixings for mounting the panel to the roof (Extra £10) (Roof space needed = 790 x 660 x 65mm)
Aero Alloy profile Fixings for mounting the panel to the roof (Roof space needed = 690 x 670 x 62mm)
Please let me know which option you need.
**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years

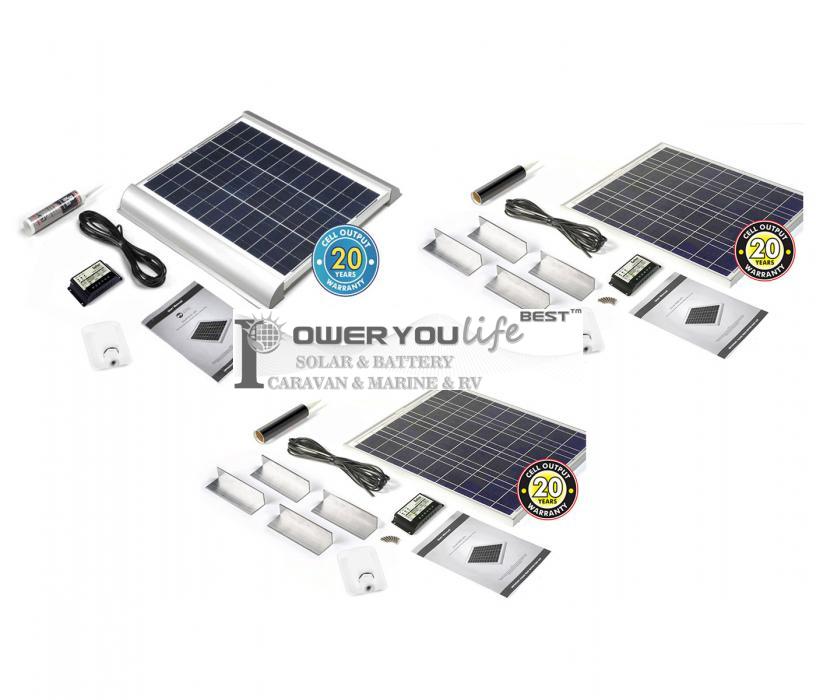

The kit comprises:
1 x KL50W-36P – 50wp solar panel
1 x 10Ah charge controller
1 x 5m Cable Bundle
1 x Standard Fitting Kit or Premium fitting kit if selected
1 x Cable Feed Gland
1 x Tube Bonding Agent
1 x Fitting Instructions

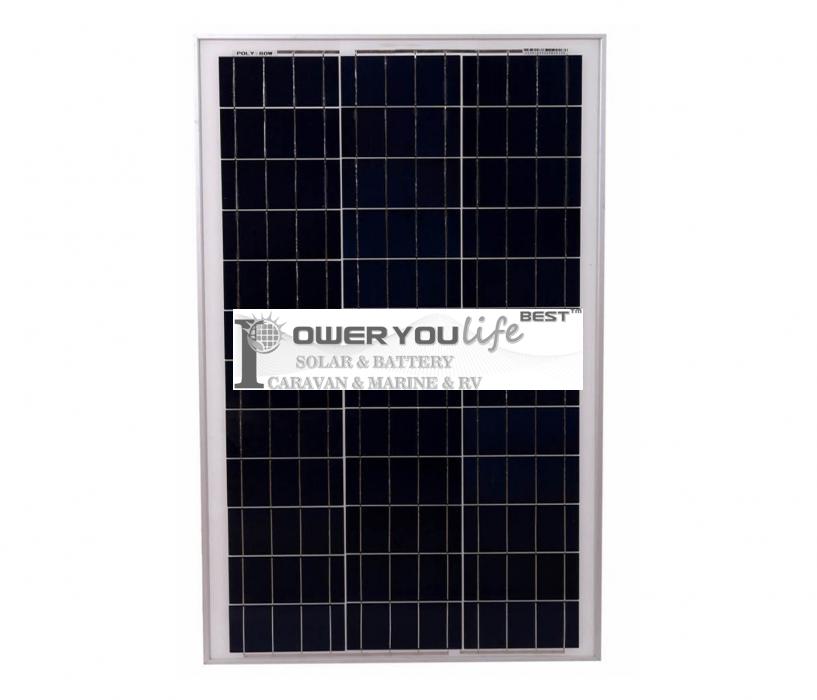

Panel Information
Power (Wp)50watts
Nominal Voltage (Vmp) 17.6V DC
Nominal Current (Imp) 2.84A
Open Circuit Voltage (Voc)22.7V
Short Circuit Current (Isc)3.14A
Operating Temperature-40 to + 85 Deg C
Max System Voltage1000V DC
Dimensions650x350x25mm
Weight 4.2Kg
Approx. watt-hours/day**300W
Approx. amp-hours/day** 17.0A
** Based on 6 hours of average daily peak sunlight hours
