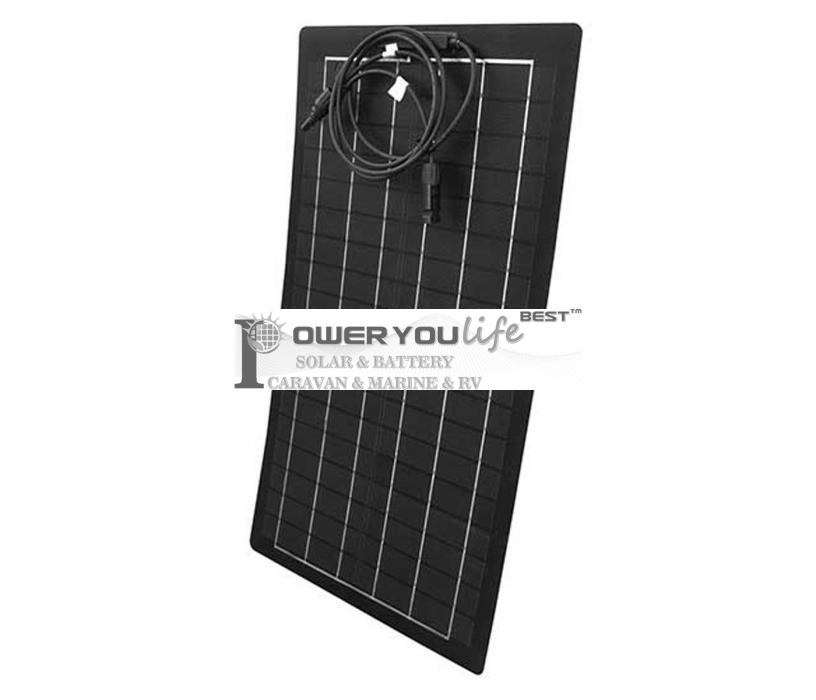

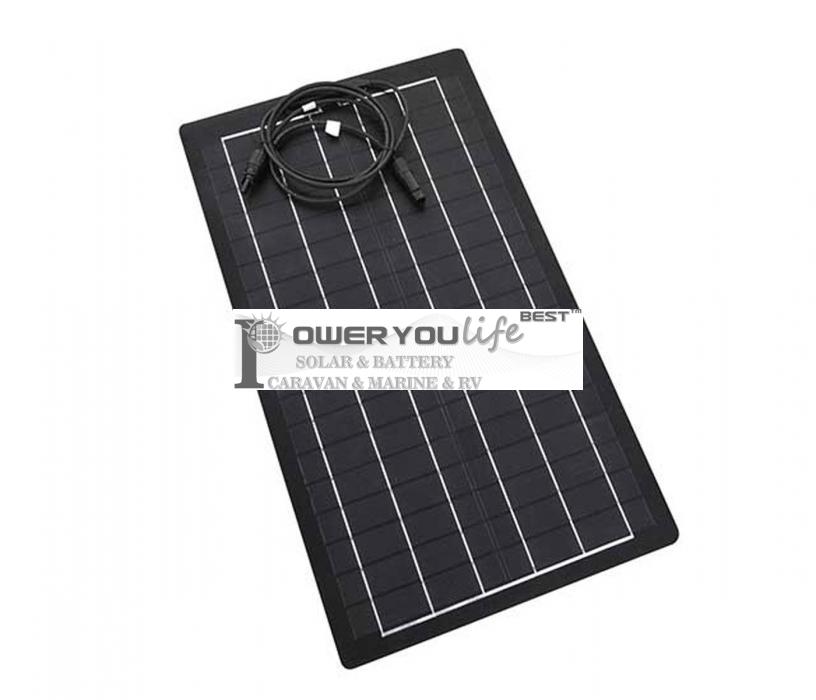

| Name: | SF-30W18V Semi-flexible Solar Panel |
|---|---|
| Model No.: | KL30W-36M-SF |
| Dimensions: | 640mm x 355mm x 2.5mm |
| Weight: | 1.0kg |
| Open Circuit Voltage: | 21.3V |
| Short Circuit Current: | 1.82A |
| Max Power Voltage: | 17.8V |
| Max System Current: | 1.69A |
| Max System Voltage: | 500VDC |
| Number of Cells: | 36 |
| Power Allowance Range: | ±3 |
| Operating Temperature: | -40~+85°C |
| Connection+Cable: | 1M cable+SAE connector |
| Standard Test Conditions (STC): | AM1.5, 1000W/m², Cells Temperature 25°C |
Product Description
Discription
BEST SOLAR 30W ETFE+fiberglass base flexible solar panel can be gently flexed to follow a smooth curve of 15 degrees max, and can be mounted on a coach roof, boat, cabin, tent, or any other irregular surface.The ETFE material bonded with the fiberglass back sheet makes a stronger panel than a cheaper PET film one with less chance of cracking or water intrusion.
Features
1.Brand Solar Cell: High Quality Solar Cell with a higher-than-average 21.5% efficiency,in addition better light absorbing,less reflection leading to more power per square inch.
2.Powerful and Lightweight: this solar panel packs 30W of power yet is only 2.5mm thick and weighs only 1.0kg,making it easier to transport, hang, and remove
3.Superior Durability : the water resistant semi-flexible solar panel is ultra durable and ideal for on yacht, boat and so on, tight spaces
4.Highly stain-resistant and easily gets cleaned by the rain.
5.Highly resistant to seawater corrosion.
6.Waterproof and highly resistant to the harsh operating conditions of a marine environment.
7.Easy Installation: unique frameless design features 4 metal reinforced mounting holes at each corner for fixing screws and for easy installation
Install:
*Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations
*Can be affixed by adhesive, grommets or Velcro (with which you can easily attach or detach the panels)
*Can be installed without costly structural roof reinforcements
