Name: | 80W 12V NARROW poly solar panel 1000×520 |
---|---|
Model No.: | KL80W-36P-S |
Dimensions: | 1000mm x 520mm x 35mm |
Weight: | 7.0kg |
Open Circuit Voltage: | 21.5V |
Short Circuit Current: | 5.10A |
Max Power Voltage: | 17.6V |
Max System Current: | 4.58A |
Max System Voltage: | 800VDC |
Number of Cells: | 36 |
Power Allowance Range: | 3 |
Operating Temperature: | -40~+85°C |

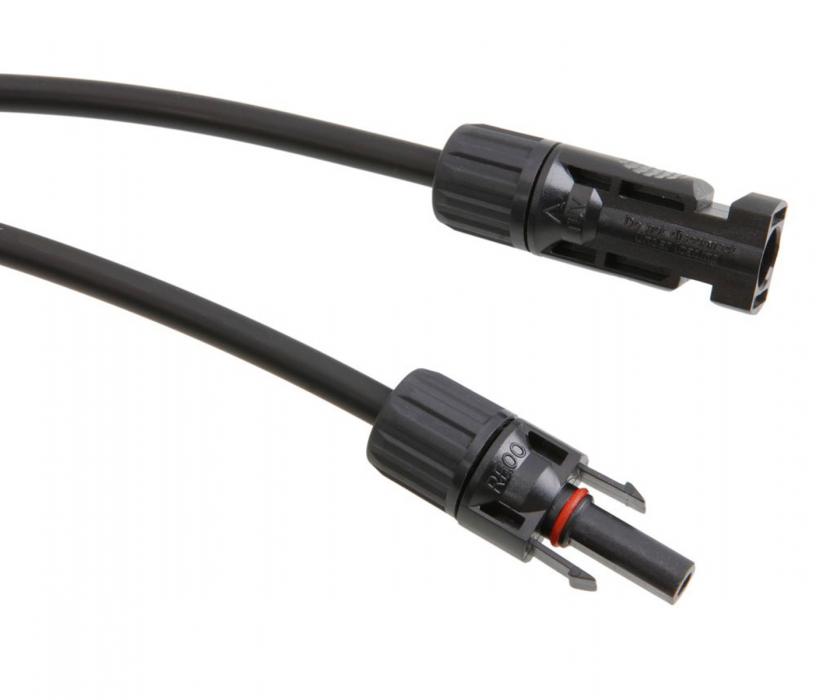

Connection+Cable: | MC4, 4mm², 900mm |
Standard Test Conditions (STC): | AM1.5, 1000W/m², Cells Temperature 25°C |
Product Description
12v 80w NARROW poly solar panel is ideally suited panel for permanent fitment to your motorhome or large caravan with limited roof area.
This 12v solar panel is powerful enough to keep your battery charged over long periods away without starting the generator or plugging in to a hookup.

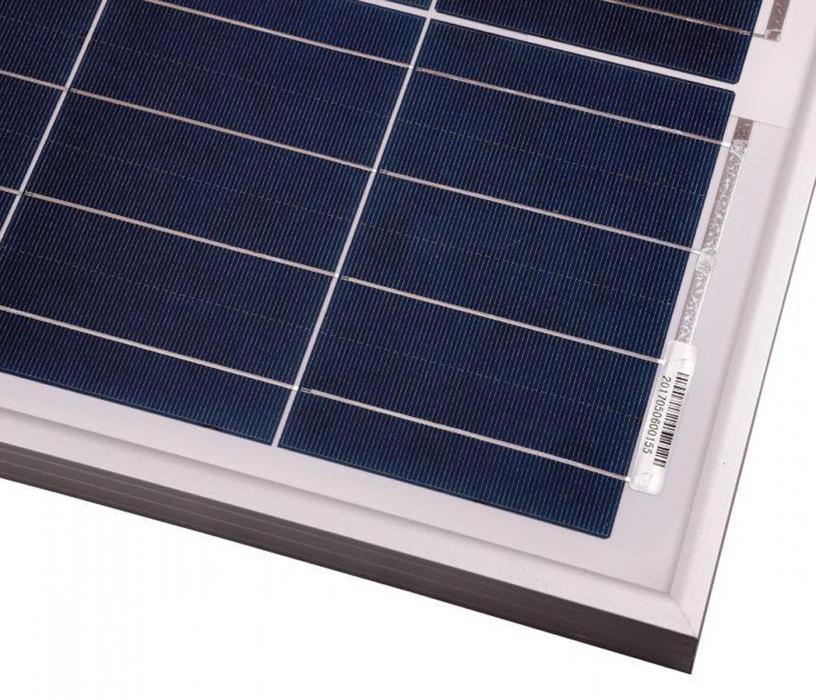

4 bus bars instead of 2
Instead of older models with only 2 busbars, our new PV series solar panels now have 4 busbars for power reduction. The 4 busbars reduce the way to the current decrease and thus the electrical resistance. The resulting lower cell resistance increases the load capacity of the solar cells enormously. Especially for flat solar modules (such as on motorhomes, caravans and caravans), the yield is significantly more.
This solar panel is perfect with the ABS solar panel mounts as a solar systems for 4WD, camping, caravanning, boating and recreational activities wherever power is required for lights, TV, camping fridge, pump or other small appliances.
Fully weather proof and professionally made with high quality components.
Top Material
10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output
High-quality
TUV,CE,RoHS certificate
High conversion efficiency
Low power tolerance of 0~+3% ;Low degradation under light exposure ;Can withstand high wind-pressure,snow load and extreme temperature ;Passing below test
IEC/EN 61215:2005;
IEC/EN 61730-1 A2
IEC/EN 61730-2 A1
