100W solar panel, poly solar panel,caravan solar panel,RV solar,camping solar-Product Center-Power your life by solar-

Product Center

Name:100W 12V NARROW poly solar panel 1150×520
Model No.:KL100W-36P-S
Dimensions:1160mm x 520mm x 35mm
Weight:8.5kg
Open Circuit Voltage:21.5V
Short Circuit Current:6.37A
Max Power Voltage:17.5V
Max System Current:5.71A
Max System Voltage:800VDC
Number of Cells:36
Power Allowance Range:5
Operating Temperature:-40~+85°C

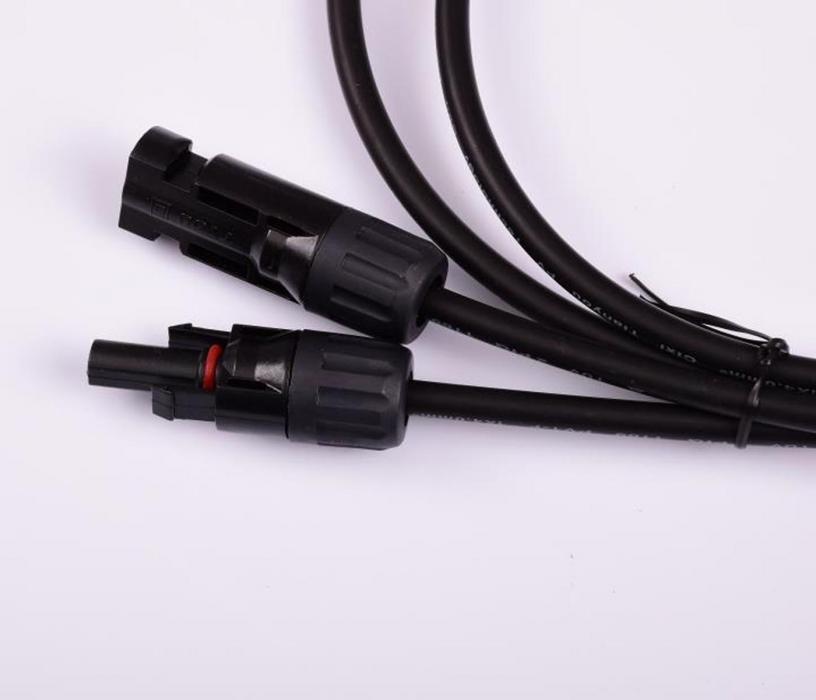

Connection+Cable:MC4, 4mm², 900mm
Standard Test Conditions (STC):AM1.5, 1000W/m², Cells Temperature 25°C

Product Description

12v 100w NARROW  poly solar panel is ideally suited panel for permanent fitment to your motorhome or large caravan with limited roof area. It can be used for many applications, our high quality monocrystalline 12v 100w solar panel works in both sunny and overcast conditions

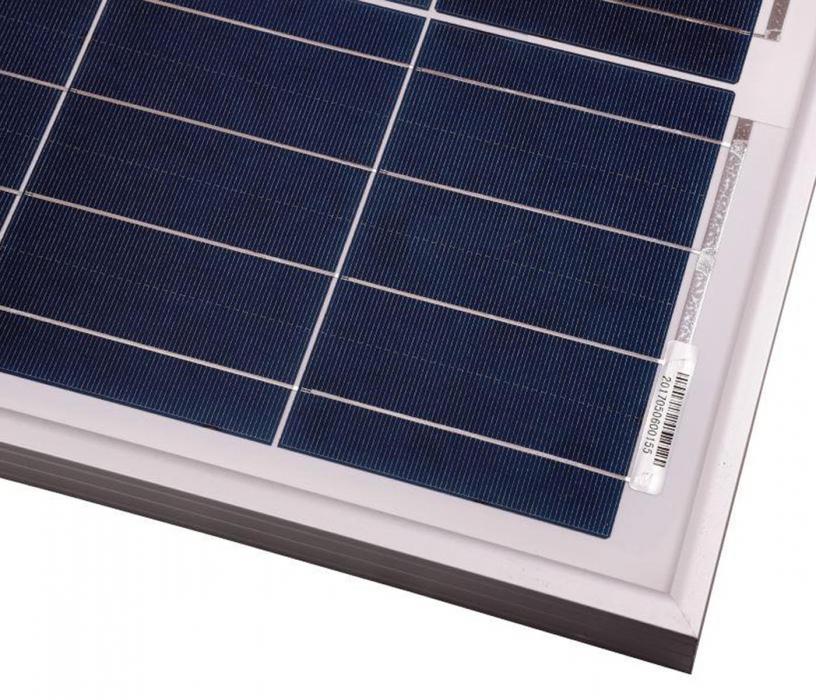

4/5 bus bars instead of 2

Instead of older models with only 2 busbars, our new PV series solar panels now have 4/5 power rails for power reduction. The 4/5 busbars reduce the way to the current decrease and thus the electrical resistance. The resulting lower cell resistance increases the load capacity of the solar cells enormously. Especially for flat solar modules (such as on motorhomes, caravans and caravans), the yield is significantly more.


This  solar panel is perfect with the ABS solar panel mounts as a solar systems for 4WD, camping, caravanning, boating and recreational activities wherever power is required for lights, TV, camping fridge, pump or other small appliances.




Top Material

10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output


High-quality

TUV,CE,RoHS certificate

High conversion efficiency

Low power tolerance of 0~+3% ;Low degradation under light exposure ;Can withstand high wind-pressure,snow load and extreme temperature ;Passing below test

IEC/EN 61215:2005;

IEC/EN 61730-1 A2

IEC/EN 61730-2 A1
