Name:20W 12V semi-flexible solar panel
Model No.:KL20W-36M-SE
Dimensions:730mm x 300mm x 2.5mm
Weight:0.84kg
Open Circuit Voltage:23.2V
Short Circuit Current:1.16A
Max Power Voltage:19.0V
Max System Current:1.05A
Max System Voltage:300VDC
Number of Cells:36
Power Allowance Range:5
Operating Temperature:-40~+85°C

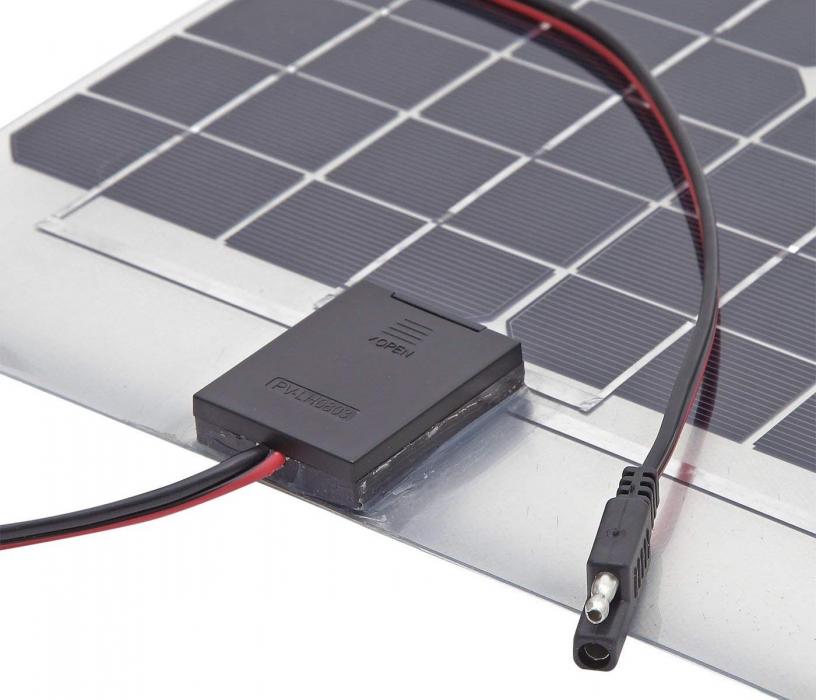

Connection+Cable:1M cable+SAE connector
Standard Test Conditions (STC):AM1.5, 1000W/m², Cells Temperature 25°C

Product Description

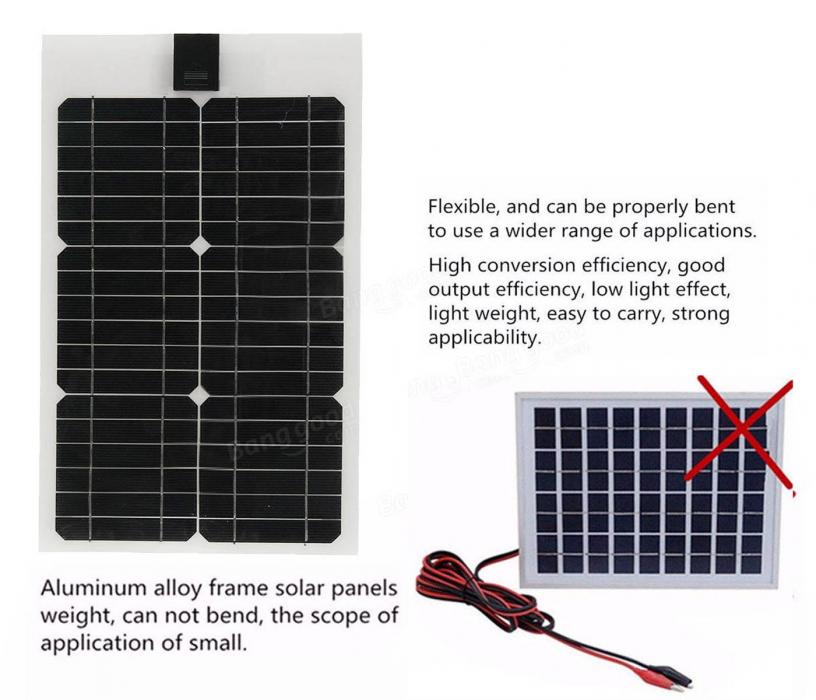

BEST SOLAR 12v 20w Monocrystalline Semi Flexible Panel, suitable for marine use, motorhomes and caravans as well as many other applications. Semi flexible so can follow the shape of a vehicle roofline etc.

The semi-flexible construction of these solar panels means they are able to curve very slightly over a deck or wheelhouse.

Our semi-flexible solar panel are widely used in many fields. like the vehicles or boats, motorhome , caravan, camping, narrow boat, yacht etc, our this flexible 12V solar panel light weight and thin contain no glass or aluminum, Can be easy installation on curved solid surfaces, with high efficiency up to 23.70%.

Our own range of solar panels for boats is ideal for non-salt based applications such as narrowboats, and inland waterway based vessels.
