Product Center

Name:Solar Panel ABS Corner Mount (set of 4)
Model No.:BS-150

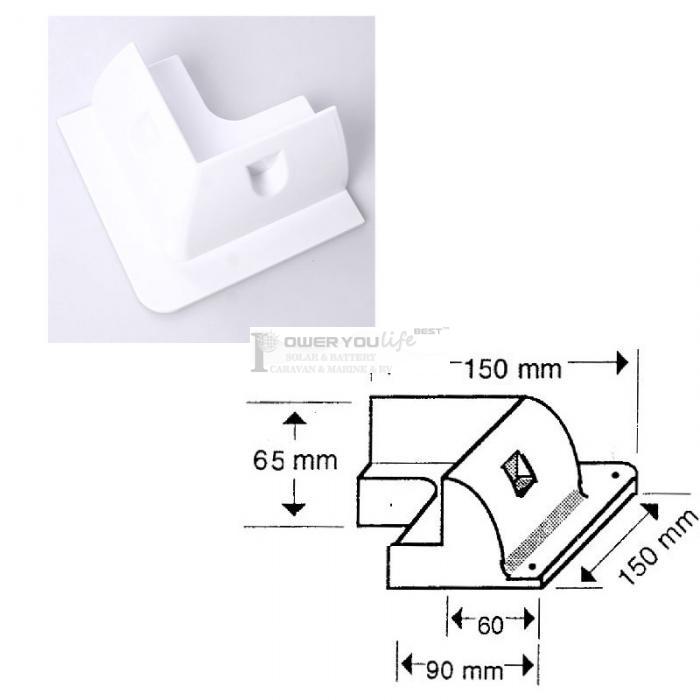

Dimensions:150 x 150 x 65mm
Weight:1.7kg
Color:White/Black
Material:ABS Plastic (Hard durable plastic)
Warranty:2 Year Warranty
Packing:4pcs/set

Product Description

PRODUCT HIGHLIGHTS

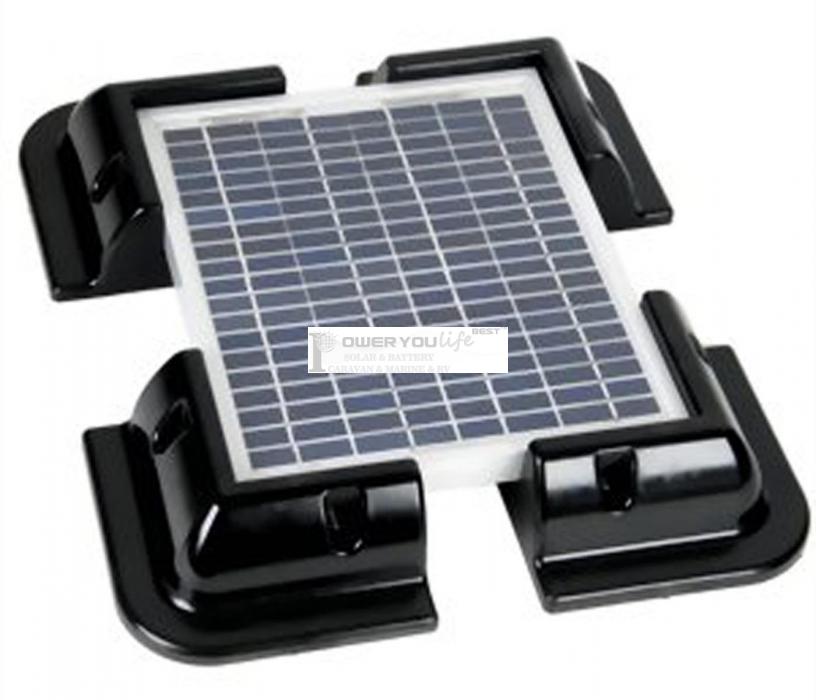

  • Set of four universal solar panel corner mounts with Waterproof are made from UV resistant ABS plastic, Environment Friendly and UV Resistance.

  • Can be used with any aluminum framed solar panel that has a side length of 30cm or more

  • The Panel Corner Bracket protect the corners of the solar panels from damage.

  • Reduces sharp corners on the solar panel and helps make protective storage covers easier to put on and off.

  • The mounts can be safely bonded to the surface regardless to drill holes

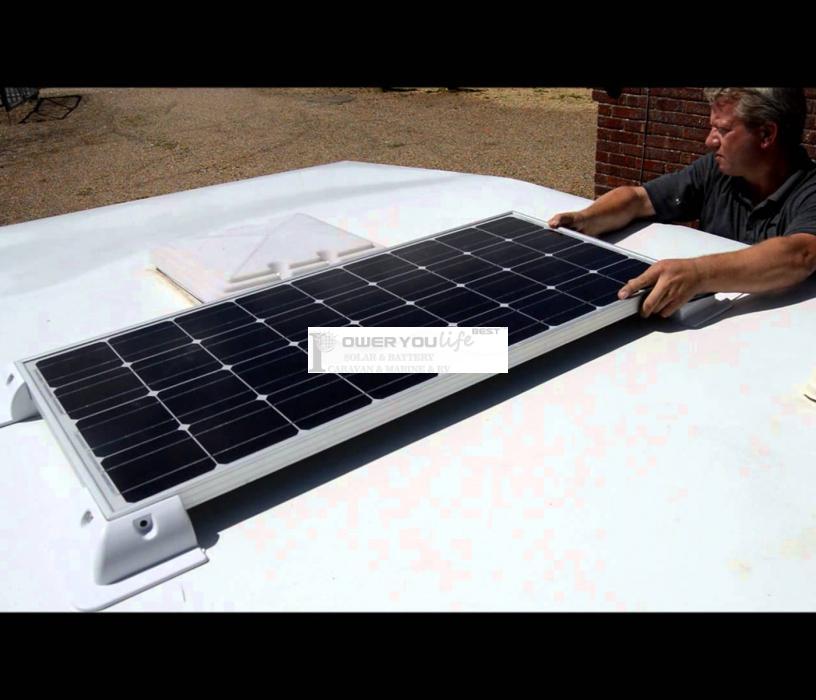

  • Ideal to fix solar panels without the need to drill holes to caravans, camper vans, boats, sheds garages etc.

  • These solar mounts are universal and can be used with most traditional solar panels up to 200W.

  • White/Black color avaliable,other colors customize

INSTALLATION

The brackets are first be screwed or bolted to the solar module using suitable stainless steel self-tapping screws. You will need to drill a clearance hole in the ABS brackets at the appropriate recessed ports. With corresponding holes in to the Solar Panel frame on each side; self tapping screws can be used to fix the solar panel to the brackets (not included).

Once the brackets are attached to the panel,the mounts are then attached to the surface using and appropriate bond/sealant.
