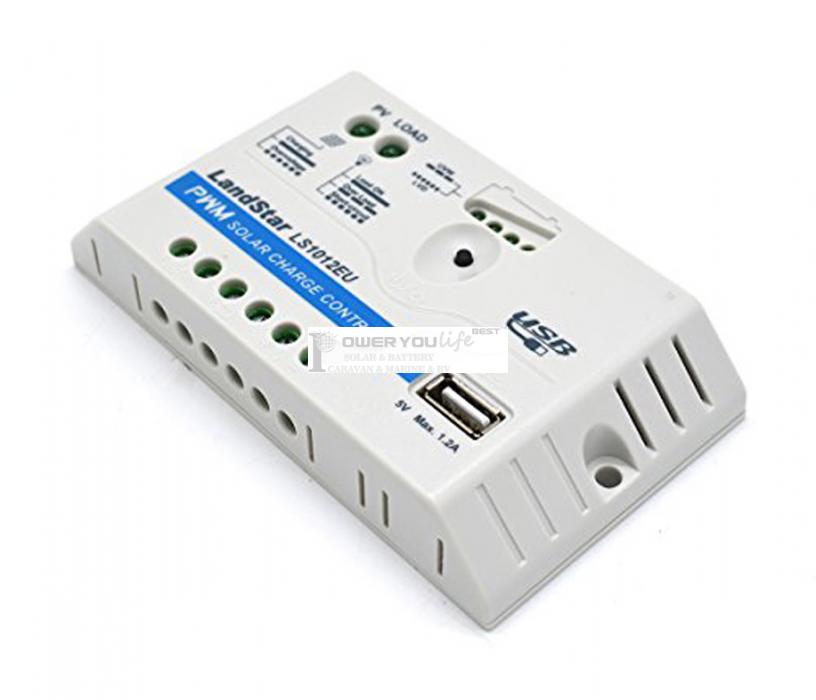

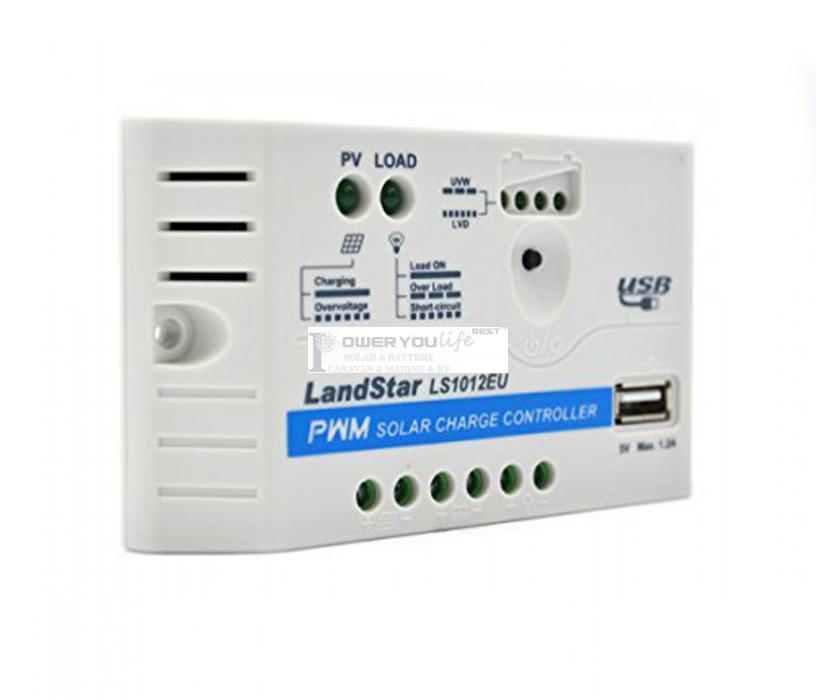

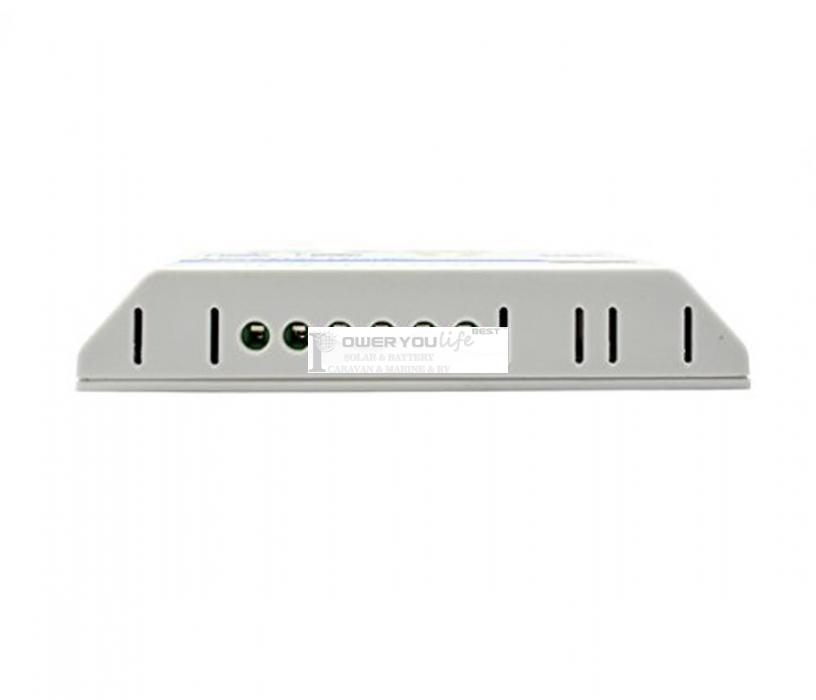

Name:LS1012EU 10A PWM LandStar Solar Charge Controller Regulators with usb
Model No.:LS1012EU
Nominal system voltage:12v
Battery input voltage range:8~16V
Rated charge/discharge current:10A
Max. PV open circuit voltage:30V
Overall dimension:120.3x67x21.8
Terminals:12AWG(4.0mm2)
Net weight:0.10kg
Enclosure:IP20
Working environment temperature:-35℃~+55℃
Humidity range:≤95 (N.C.)

Product Description

LS-EU economic solar controller  is new member of Land Star family and ideal for small solar  system especially home system. Based on the LS-E series, LS-EU series add a +5V/1.2A USB terminal output which can charge mobile phone, fans and other electronic device.

Features:

·High efficient Series PWM charging, increase battery lifetime and improve solar system performance
·Use MOSFET as electronic switch, without any mechanical switch
·Intuitive LED indicators showing battery voltage status
·Gel, Sealed, and Flooded battery type optional
·Manual control the output of the load
·Temperature compensation, correct charging and discharging parameters automatically
·Humanized  Key, more comfortable and convenient
·Industrial grade design

Electronic Protections:

·Load overload protection
·Load short circuit protection
·Battery over discharge protection
·Battery reverse polarity protection

Equalize charging voltage

Gel: ----, Sealed: 14.6V, Flooded: 14.8V

Boost charging voltage

Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V

Float charging voltage

Gel / Sealed / Flooded:13.8V

Low voltage( reconnect)

Gel / Sealed / Flooded:12.6V

Low voltage (disconnect )

Gel / Sealed / Flooded:11.1V

USB output port

5VDC/1.2A


Charge circuit voltage drop

≤0.13V

Discharge circuit voltage drop

≤0.17V

Self-consumption

≤5mA(12V); ≤7mA (24V)

Temp. compensation

-5mV/℃/2V

Enclosure

IP20

Grounding

Common Positive
