PRODUCT HIGHLIGHTS

• Set of two short mounts with Waterproof are made from UV resistant ABS plastic, Environment Friendly and UV Resistance.

• The light weight design help to reduce caravan/RV roof load,make it more safe.

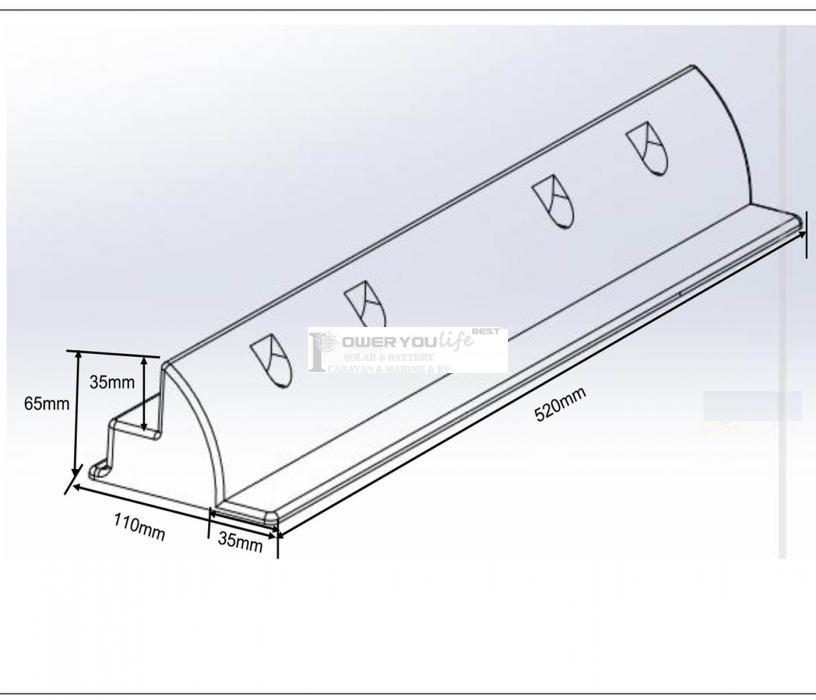

• These mounts are 520mm long and are ideal for supporting solar panles with a width around 520mm.

• Can be used with any aluminum framed solar panel that has a side length of 30cm or more

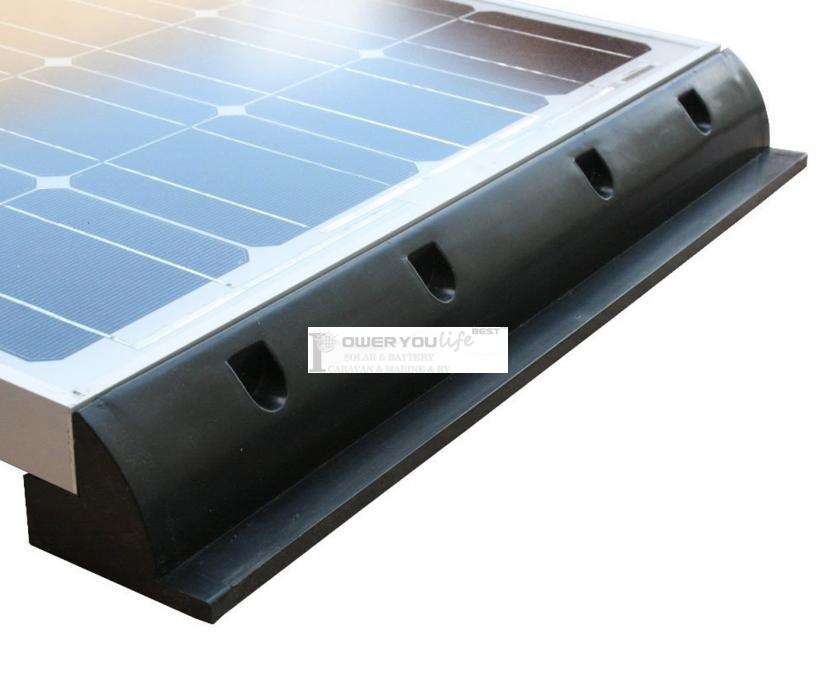

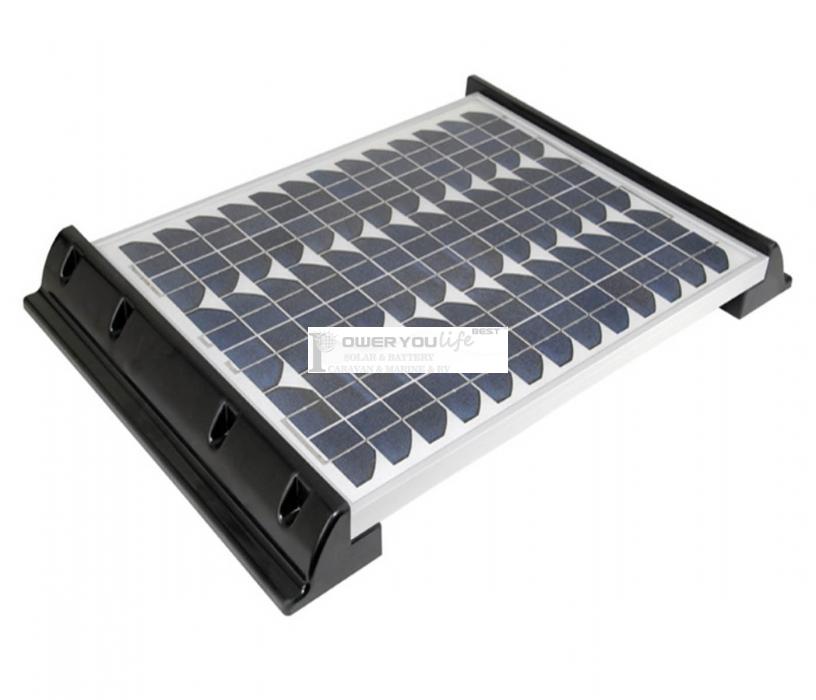

• Flush Side Mounts for mounting solar panels to a surface such as a caravan or motorhome roof.

• Reduces sharp corners on the solar panel and helps make protective storage covers easier to put on and off.

• The mounts can be safely bonded to the surface regardless to drill holes

• Ideal to fix solar panels without the need to drill holes to caravans, camper vans, boats, sheds garages etc.

• These solar mounts are universal and can be used with most traditional solar panels up to 300W.

• White/Black color avaliable,other colors customize

INSTALLATION

The brackets are first be screwed or bolted to the solar module using suitable stainless steel self-tapping screws. You will need to drill a clearance hole in the ABS brackets at the appropriate recessed ports. With corresponding holes in to the Solar Panel frame on each side; self tapping screws can be used to fix the solar panel to the brackets (not included).

Once the brackets are attached to the panel,the mounts are then attached to the surface using and appropriate bond/sealant.

Please note that you will need to use a suitable stainless steel bolt and locking nut; we would recommend a minimum of M4.8 x 32mm.
