Product Center

Name:500W poly solar Narrow Boat Kit
Model No.:BSNBK500
Dimensions:1480mm x 680mm x 35mm
Weight:12.0 kg
Open Circuit Voltage:22.0V
Short Circuit Current:10.85A
Max Power Voltage:17.5
Max System Current:9.71 A
Max System Voltage:1000VDC
Number of Cells:36
Power Allowance Range:3
Operating Temperature:-40~+85°C
Connection+Cable:MC4, 4mm², 900mm
Standard Test Conditions (STC):AM1.5, 1000W/m², Cells Temperature 25°C

Product Description

Description

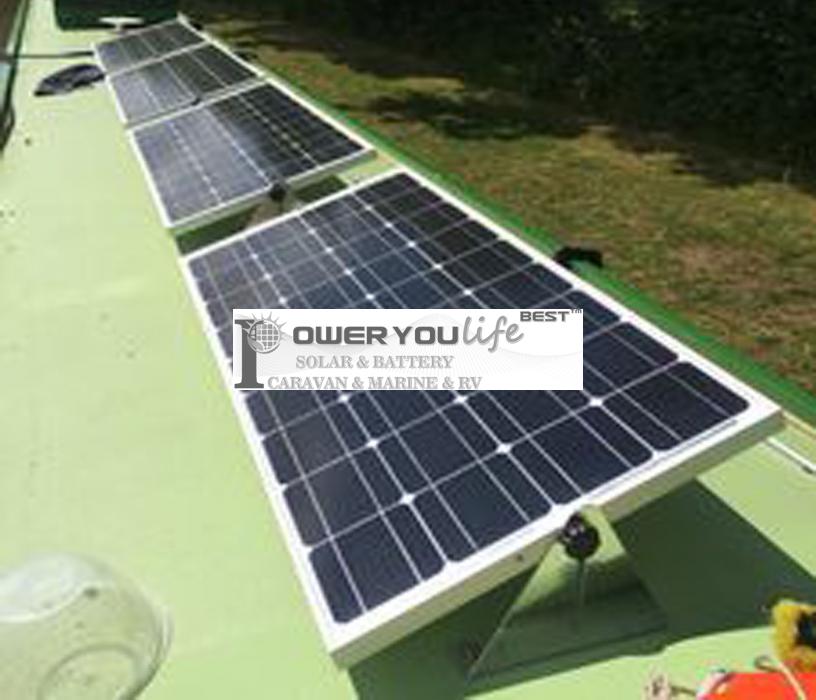

The 500 Watt Narrow Boat Kit comprising of twin 170 Watt solar panels, is ideal for use on decktops and where the time spent away from a mains hook up is more than 7 days. Also useful for charging more power hungry consumer appliances such lap top computers, TV’s and much more.

The 3 x 170 watt panels provides a continuous trickle feed maintaining and extending the life of any 12 volt battery.

The 3 x 170 watt solar panesl are supplied with all the necessary cable (5m), connectors, detailed installation instructions

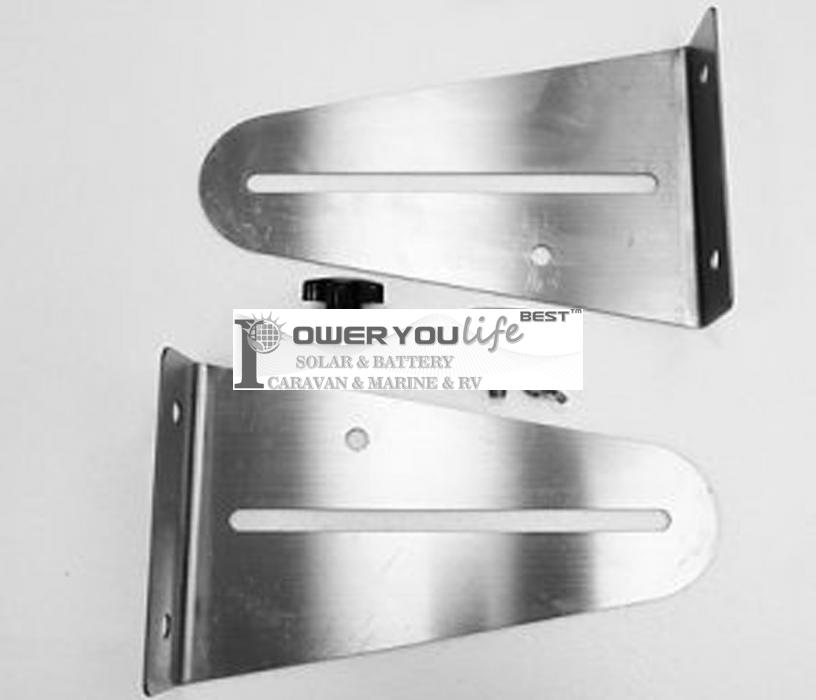

Also included in this kit is a Narrow Boat bracket system that will let you change the position of the solar panel to optomise your charging.

The 30Ah Charge controller is included with this kit to protect the battery from being overcharged and to prevent reverse current drain.

Approx. watt-hours/day**3000W

Approx. amp-hours/day**  174.85A

** Based on 6 hours of average daily peak sunlight hours


Kit Includes

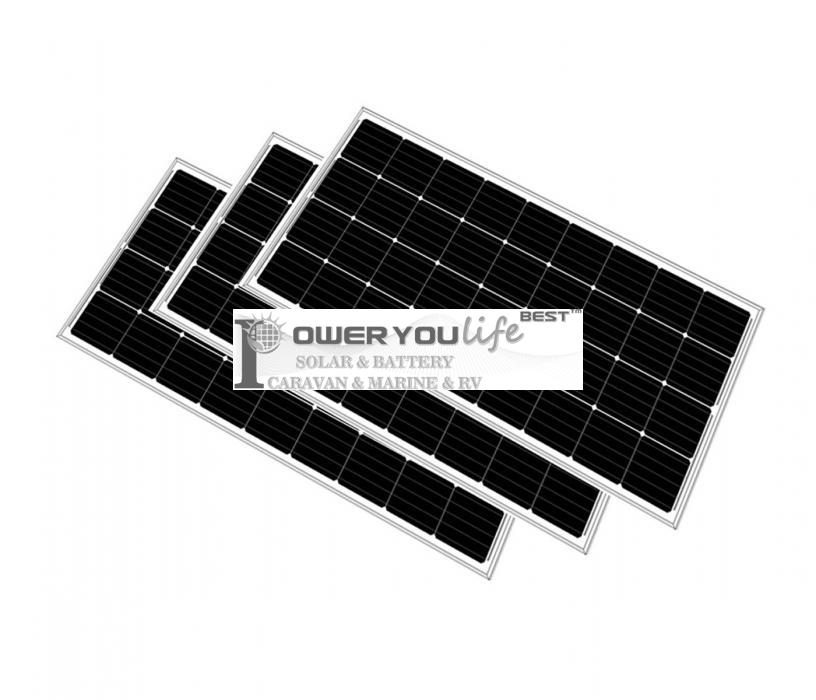

3 x KL170W-36M– 170wp mono solar panel

1 x  – 30Ah charge controller

1 x 5m Cable Bundle (each panel)

3 x Multi angle / direction roof top brackets

2 x BS-ENTRY-LW – Double Cable Feed Gland

1 x Tube ISR Bonding Agent

1 x Pack fuses, ring terminals etc

1 x Fitting Instructions


Key Features

High efficiency crystalline cell for “all weather” charging

Water resistant, robust construction for outdoor use.

Adjustable angle Narrow boat bracket

20 year cell warranty and 10 year module warranty**

**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years
