Discription

The 100 Watt SLIM Mono Solar Rooftop Kit is ideal for use on small / medium sized caravans and motor homes where power consumption is mainly limited to running the interior lights and water pump and / or use will only be during Spring, Summer and Autumn.

High efficiency crystalline cell for “all weather” charging

Perfect for TV operation, 240v appliances* and for permanent fitting

Water resistant, robust construction for outdoor use.

20 year cell warranty and 10 year module warranty**

You have three options on this Kit.

Standard Metal Brackets for mounting the panel to the roof (Roof space needed = 510 x 1580 x 50mm)

Premium profile Fixings for mounting the panel to the roof (Extra £10) (Roof space needed = 530 x 1700 x 65mm)

Aero Alloy profile Fixings for mounting the panel to the roof (Roof space needed = 410 x 1630 x 62mm)

Please let me know which option you need.

**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years

The kit comprises:

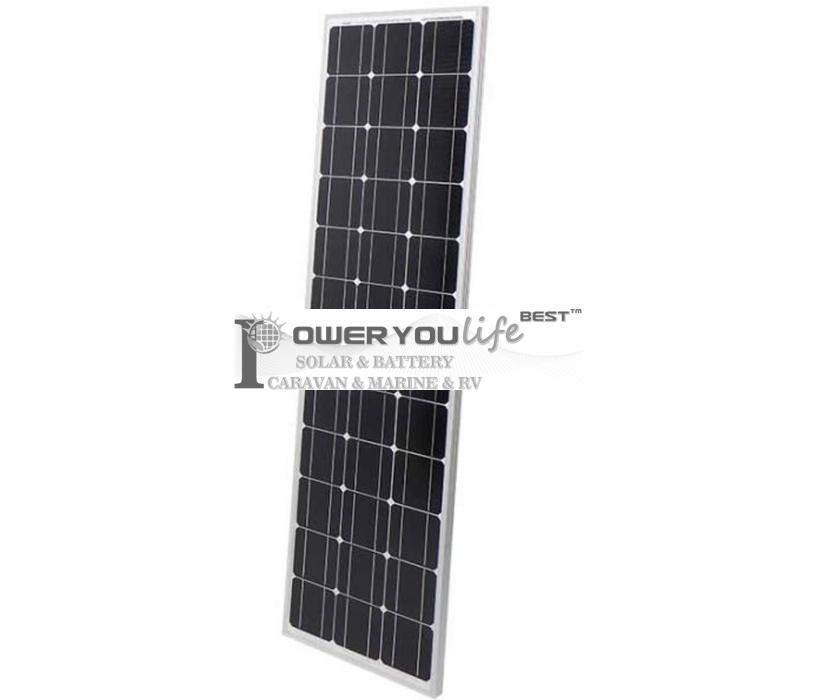

1 x KL100W-36M-S – 100wp mono solar panel

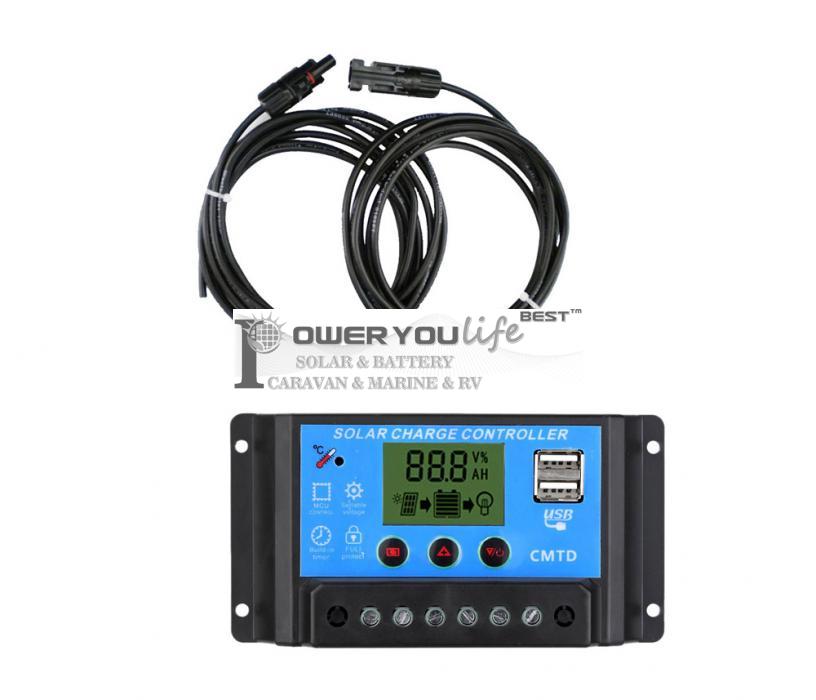

1 x   10Ah charge controller

1 x 5m Cable Bundle

1 x  Standard Fitting Kit or Premium fitting kit if selected

1 x Cable Feed Gland

1 x Tube Bonding Agent

1 x Fitting Instructions

Panel Information

Power (Wp) 100watts

Nominal Voltage (Vmp) 17.5V DC

Nominal Current (Imp) 5.71A

Open Circuit Voltage (Voc)21.5V

Short Circuit Current (Isc)6.37A

Operating Temperature-40 to + 85 Deg C

Max System Voltage1000V DC

Dimensions1010x680x35mm

Weight 8.5Kg

Approx. watt-hours/day**600W

Approx. amp-hours/day**  34.26A

** Based on 6 hours of average daily peak sunlight hours
