Product Center

Name:130W 12V poly solar panel 1010×680
Model No.:KL130W-36P
Dimensions:1200mm x 680mm x 35mm
Weight:8.5kg
Open Circuit Voltage:21.5V
Short Circuit Current:7.67A
Max Power Voltage:17.5V
Max System Current:7.42A
Max System Voltage:800VDC
Number of Cells:36
Power Allowance Range:5
Operating Temperature:-40~+85°C
Connection+Cable:MC4, 4mm², 900mm
Standard Test Conditions (STC):AM1.5, 1000W/m², Cells Temperature 25°C

Product Description

The 130W12V  poly solar panel ideally suited panel for your motorhome or caravan. It is powerful enough to keep your battery charged over that long weekend away without starting the generator or plugging in to an external source.

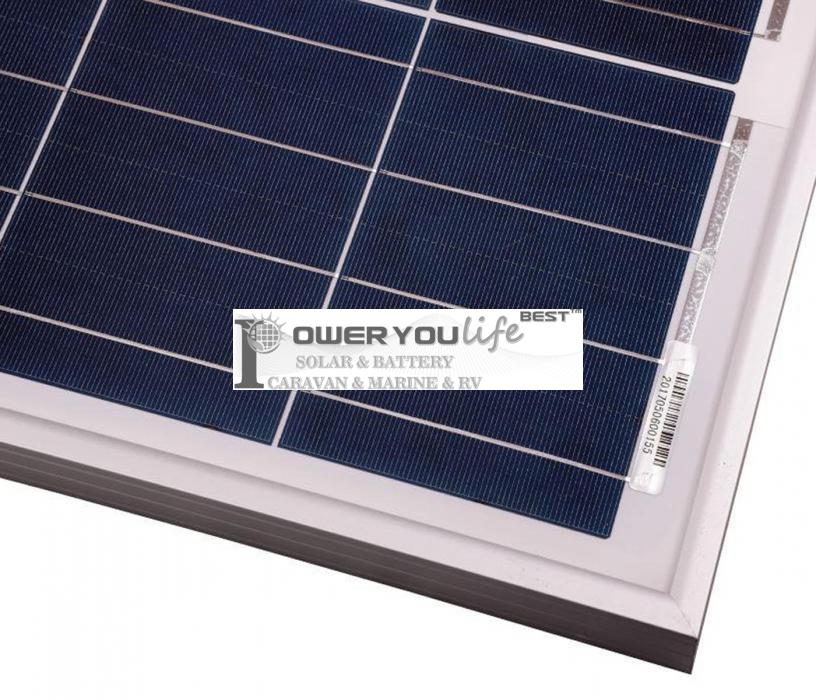

4/5 bus bars instead of 2

Instead of older models with only 2 busbars, our new PV series solar panels now have 4 power rails for power reduction. The 4/5 busbars reduce the way to the current decrease and thus the electrical resistance. The resulting lower cell resistance increases the load capacity of the solar cells enormously. Especially for flat solar modules (such as on motorhomes, caravans and caravans), the yield is significantly more.


This 12v 130w poly solar panel is powerful enough to keep your battery charged over long periods away without starting the generator or plugging in to an external source. Comes with MC4 connectors so they are easily added to a string and protected from the wet weather.


It is perfect with the ABS solar panel mounts as a solar systems for 4WD, camping, caravanning, boating and recreational activities wherever power is required for lights, TV, camping fridge, pump or other small appliances.



Top Material

10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output


High-quality

TUV,CE,RoHS certificate

High conversion efficiency

Low power tolerance of 0~+3% ;Low degradation under light exposure ;Can withstand high wind-pressure,snow load and extreme temperature ;Passing below test

IEC/EN 61215:2005;

IEC/EN 61730-1 A2

IEC/EN 61730-2 A1
