Name: | 150 Watt Poly Solar Rooftop Kit with Premium fitting |
---|---|
Model No.: | BSRTK150P |
Dimensions: | 680mm x 1480mm x 35mm |
Weight: | 11.2kg |
Open Circuit Voltage: | 22.4V |
Short Circuit Current: | 8.81A |
Max Power Voltage: | 18.3V |
Max System Current: | 8.2A |
Max System Voltage: | 600VDC |
Number of Cells: | 36 |
Power Allowance Range: | 3 |
Operating Temperature: | -40~+85°C |
Connection+Cable: | MC4, 4mm², 900mm |
Standard Test Conditions (STC): | AM1.5, 1000W/m², Cells Temperature 25°C |
Product Description
Discription
The 150 Watt Poly Solar Rooftop Kit is ideal for use on small / medium sized caravans and motor homes where power consumption is mainly limited to running the interior lights and water pump and / or use will only be during Spring, Summer and Autumn.
High efficiency crystalline cell for “all weather” charging
Perfect for TV operation, 240v appliances* and for permanent fitting
Water resistant, robust construction for outdoor use.
20 year cell warranty and 10 year module warranty**
You have three options on this Kit.

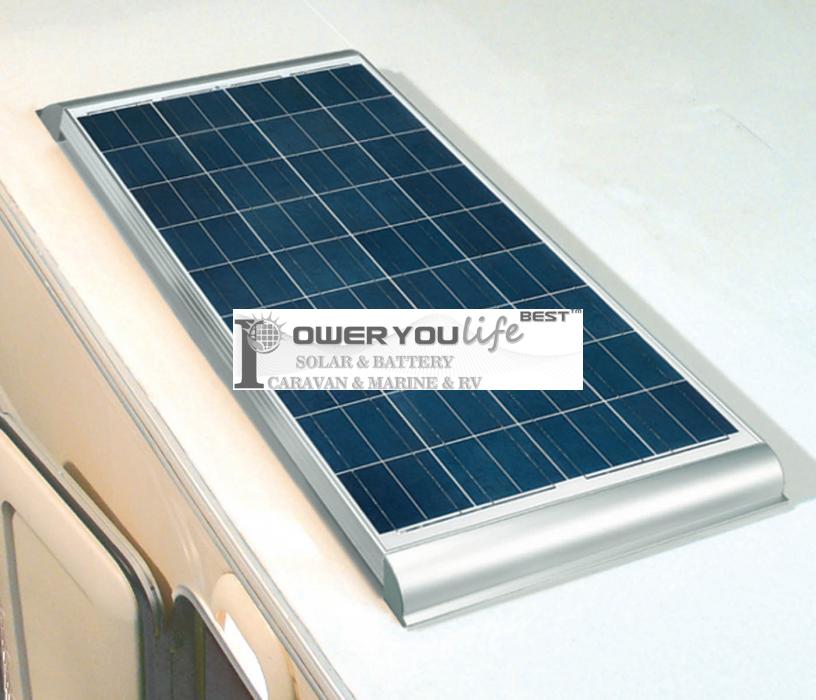

Aero Alloy profile Fixings for mounting the panel to the roof (Roof space needed = 680 x 1630 x 62mm)
Please let me know which option you need.
**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years
The kit comprises:

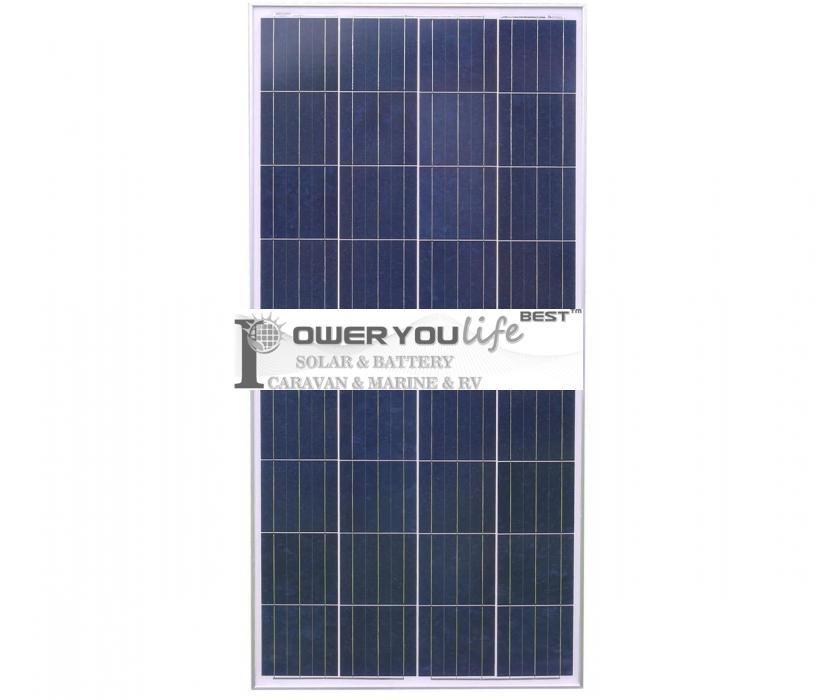

1 x KL150W-36P – 150wp solar panel

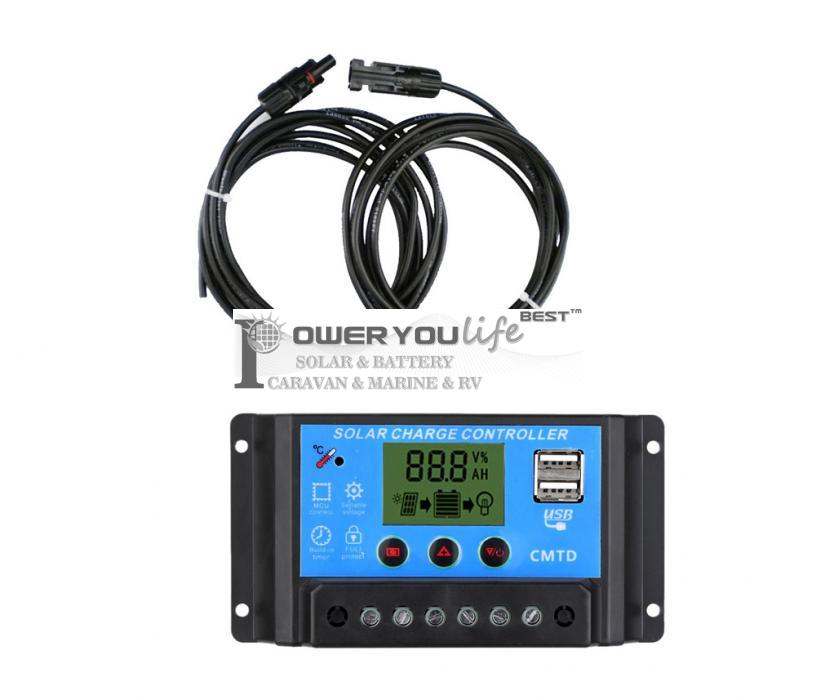

1 x 10Ah charge controller
1 x 5m Cable Bundle
1 x Standard Fitting Kit or Premium fitting kit if selected
1 x Cable Feed Gland
1 x Tube Bonding Agent
1 x Fitting Instructions
Panel Information
Power (Wp) 150watts
Nominal Voltage (Vmp) 18.3V DC
Nominal Current (Imp) 8.2A
Open Circuit Voltage (Voc)22.4V
Short Circuit Current (Isc)8.81A
Operating Temperature-40 to + 85 Deg C
Max System Voltage1000V DC
Dimensions1010x680x35mm
Weight 8.5Kg
Approx. watt-hours/day**900W
Approx. amp-hours/day** 49.2A
** Based on 6 hours of average daily peak sunlight hours
