Name:130 Watt Poly Solar Rooftop Kit with Premium fitting
Model No.:BSRTK130P
Dimensions:680mm x 1200mm x 35mm
Weight:8.5kg
Open Circuit Voltage:21.5V
Short Circuit Current:7.67A
Max Power Voltage:17.5V
Max System Current:7.42A
Max System Voltage:600VDC
Number of Cells:36
Power Allowance Range:3
Operating Temperature:-40~+85°C
Connection+Cable:MC4, 4mm², 900mm
Standard Test Conditions (STC):AM1.5, 1000W/m², Cells Temperature 25°C

Product Description

Discription

The 130 Watt Poly Solar Rooftop Kit is ideal for use on small / medium sized caravans and motor homes where power consumption is mainly limited to running the interior lights and water pump and / or use will only be during Spring, Summer and Autumn.


High efficiency crystalline cell for “all weather” charging

Perfect for TV operation, 240v appliances* and for permanent fitting

Water resistant, robust construction for outdoor use.

20 year cell warranty and 10 year module warranty**

You have three options on this Kit.

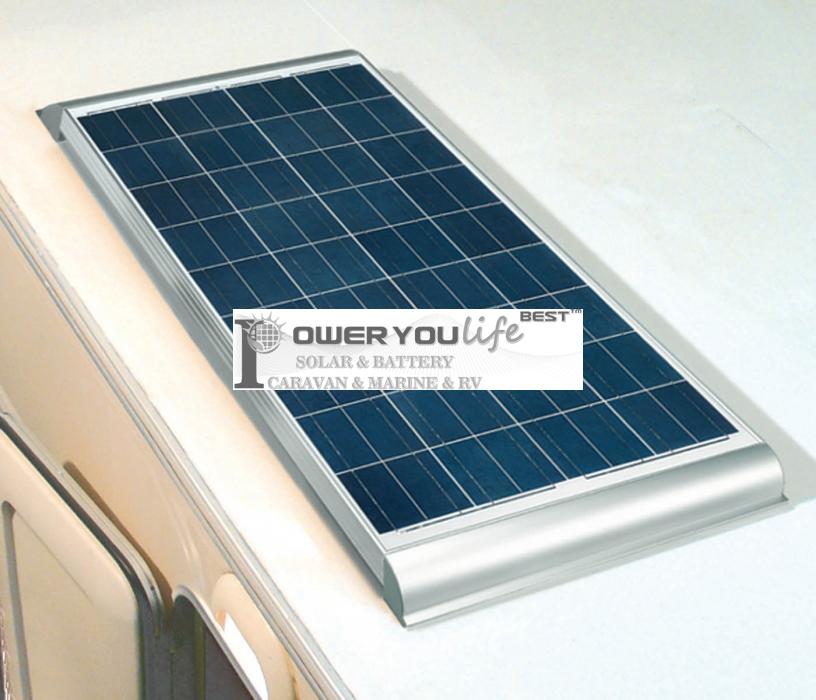

Aero Alloy profile Fixings for mounting the panel to the roof (Roof space needed = 680 x 1160 x 62mm)

Please let me know which option you need.


**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years


The kit comprises:

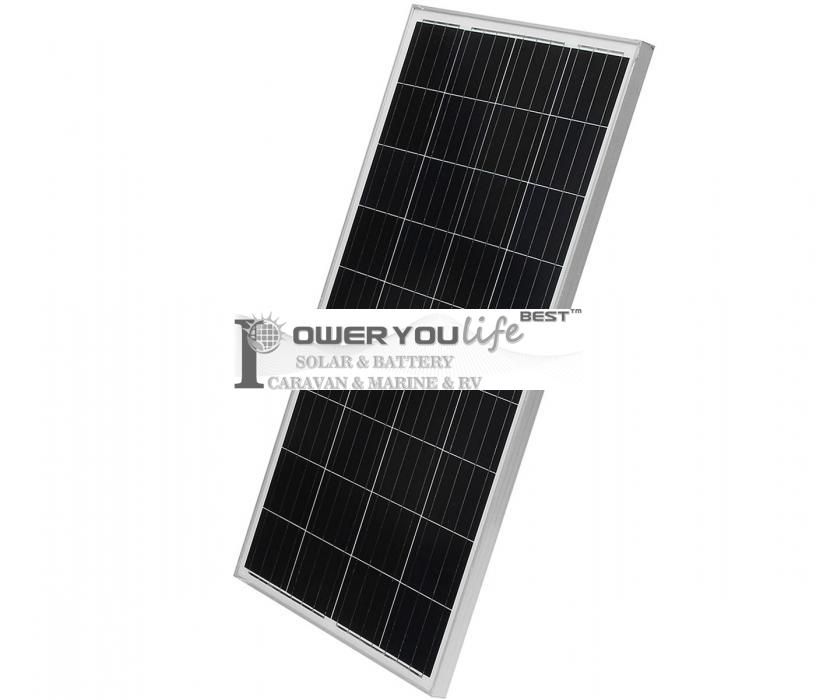

1 x KL130W-36P – 130wp solar panel

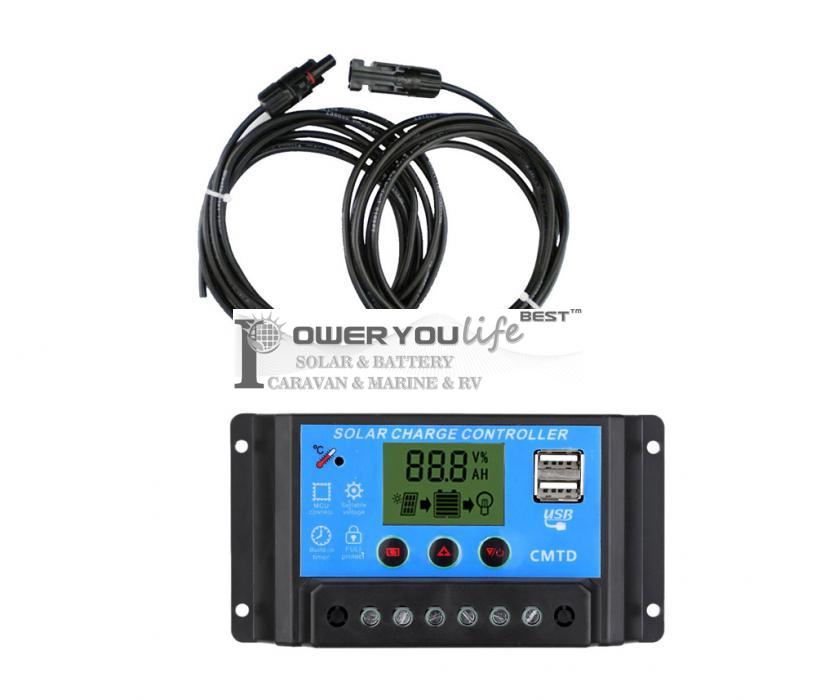

1 x   10Ah charge controller

1 x 5m Cable Bundle

1 x  Standard Fitting Kit or Premium fitting kit if selected

1 x Cable Feed Gland

1 x Tube Bonding Agent

1 x Fitting Instructions


Panel Information

Power (Wp) 130watts

Nominal Voltage (Vmp) 17.5V DC

Nominal Current (Imp) 7.42A

Open Circuit Voltage (Voc)21.5V

Short Circuit Current (Isc)6.37A

Operating Temperature-40 to + 85 Deg C

Max System Voltage1000V DC

Dimensions1010x680x35mm

Weight 8.5Kg

Approx. watt-hours/day**780W

Approx. amp-hours/day**  44.56A

** Based on 6 hours of average daily peak sunlight hours
