Name:400W solar panel kit for charging a 12V24V battery in a motorhome, caravan, campervan, boat
Model No.:BSPRM400
Dimensions:1300mm x 820mm x 35mm
Weight:13.2 kg
Open Circuit Voltage:23.8V
Short Circuit Current:10.98A
Max Power Voltage:19.5V
Max System Current:10.26A
Max System Voltage:1000VDC
Number of Cells:40
Power Allowance Range:3
Operating Temperature:-40~+85°C
Connection+Cable:MC4, 4mm², 900mm
Standard Test Conditions (STC):AM1.5, 1000W/m², Cells Temperature 25°C

Product Description

Description

This is one of the most powerful solar charging kits for vehicles, boats or off-grid power systems. It can generate up to 17A charging current when charging a 12V battery, so a typical 100Ah battery will be charged from 0% to 100% in about 6 hours of bright sunlight.

The high efficiency polycrystalline solar panel included in the kit has been manufactured to the highest standards, thoroughly tested and labelled with a unique serial number for further quality control and increased warranty protection.

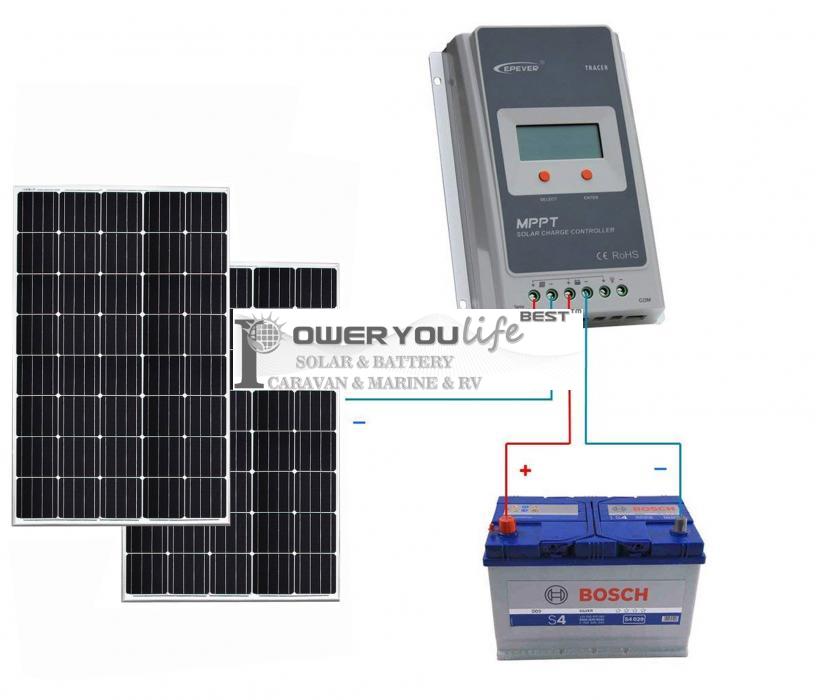

The solar charge controller included in this kit uses the most advanced Maximum Power Point Tracking (MPPT) technology to extract the maximum output from the solar panel. It comes with a full set of protection functions such as protection against reverse current, over-charge, over discharge, over voltage, over load, short circuit and reverse polarity. The LCD display shows various charging parameters such as voltage, current and power for the solar panel and the battery. An optional advanced remote LCD display can also be connected (not included, product code MT50).



Kit Includes

This Package includes:

2 x 200W  Monocrystalline Solar Panel

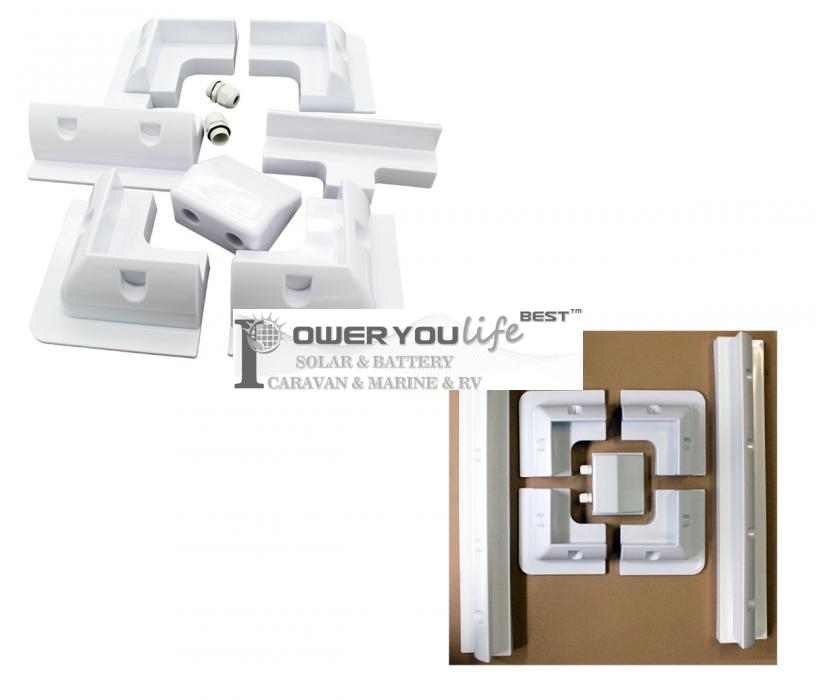

2 x ABS Corner Heavy Duty Solar Panel Mounting Bracket (Set of 4)

2 x ABS Heavy Duty Long Solar Panel Mounting Bracket (Set of 2)

1 x 30Amp 12V/24V MPPT Solar Charge Controller

1 x ABS Roof Top Wire Housing

1 x Y Connector Pair to Join Two Panels 30A Max

1 x 5m of Black & Red Solar Wire with MC4 Connector


*the ABS mounts also could choose corner mount+short side mounts



Key Features

One of the most powerful solar charging kits for vehicles, boats and off-grid power systems - up to 20/5A charging current per hour in bright sunlight

High efficiency 30A MPPT solar charge controller with automatic 12V / 24V selection to extract the maximum power from the solar panel

Comes complete with all mounting brackets, cables, a waterproof cable gland, connectors, and a detailed user manual

Built-in LCD display shows real-time charging parameters such as voltage, current and power for the solar panel and the battery
