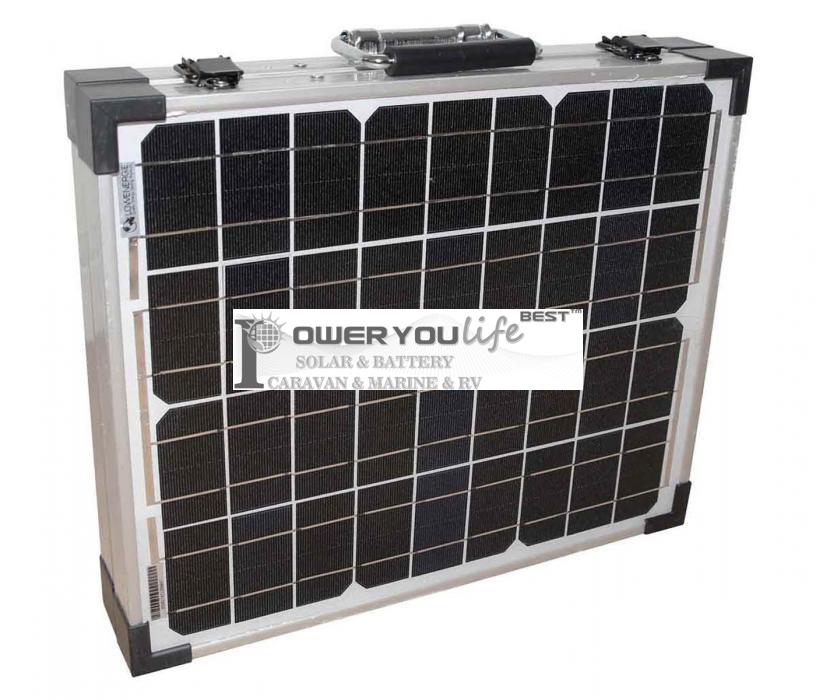

Name:40w MonoCrystalline Folding Solar Panel Kit for boat caravan home
Model No.:KL-F-40W
Peak power:100W
Maximum power voltage:18.0V
Maximum power current:2.22A (2 x 1.11A)
Open circuit voltage:21.5V
Short circuit current:2.44A (2 x 1.22A)
Maximum System Voltage:600V
Weight:4.6kg
Dimensions:420 x 350 x 70mm
Power Allowance Range:3
Operating Temperature:-40~+85°C
Connection+Cable:MC4, 4mm², 900mm
Standard Test Conditions (STC):AM1.5, 1000W/m², Cells Temperature 25°C

Product Description

Description



The 40w BestSolar folding solar kit is the ideal solution for all 12v battery charging. Perfect for use as a touring charger on motorhomes, caravans and general battery charging. With a built in regulator, charge controller. It monitors the battery condition and protects against over charging, reverse charging and short circuits. Suitable for sealed and open leisure batteries as well as Gel and SLA.Made with the highest quality monocrystalline solar cell guarantees the most efficient solar charging.100% water proof and protected against short circuits. Includes a built in, easy setup stand.The briefcase comes in a deluxe protective carry case for easy transport and safe storage. Simply unwrap and connect to your battery via the 5m cable and crocodile clips.

This high quality monocrystalline 12v solar panel works in both sunny and overcast conditions and is fully weatherproof.

Under average conditions in the UK summer this panel will generate approx 28ah per day

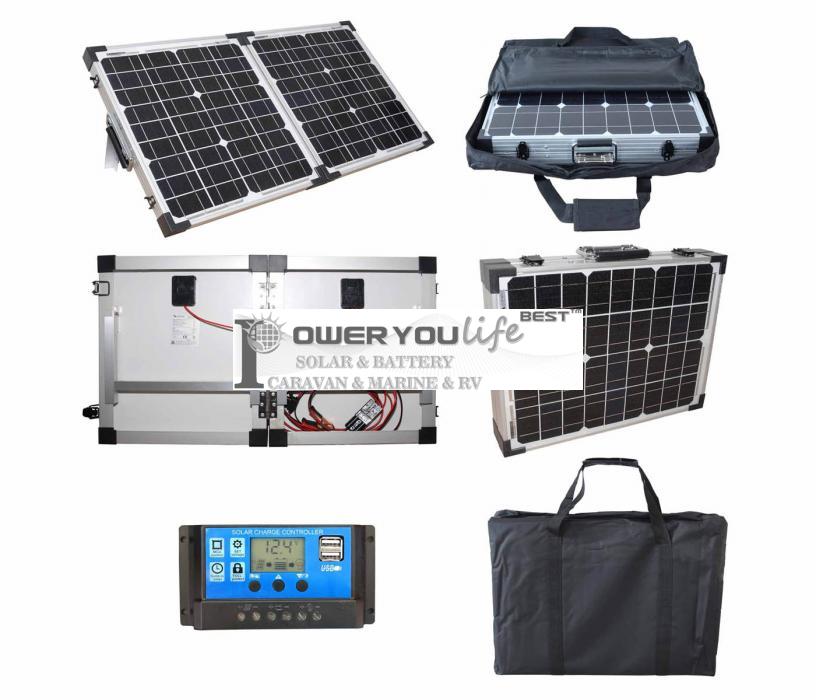

Kit Includes

High efficiency 20W + 20W folding solar panels

Advanced fully automated 10A solar charge controller with many protection functions

Adjustable aluminium stand, handle and latches

5m cable with a battery plug and a fuse

Battery crocodile clips for ease of connection

Quality protective case

Installation manual


Key Features

The kit has several important features which make it a truly unique premium quality product:

High efficiency 20W + 20W folding monocrystalline solar panels are made of high quality solar cells

Storage bag is not just a dust cover - it's a protective case made with a layer of foam which can prevent accidental damages to the frame and glass

Advanced fully automated 10A solar charge controller provides complete overcharge, reverse current, incorrect polarity and short circuit protection

The controller uses PWM technology and supports several battery types with different charging parameters for maximum efficiency of charging

The kit is very easy to set up and install, you can start using it in seconds.
