20w solar panel,poly solar panel,caravan solar,pump solar,light solar-Product Center-Power your life by solar-

Product Center

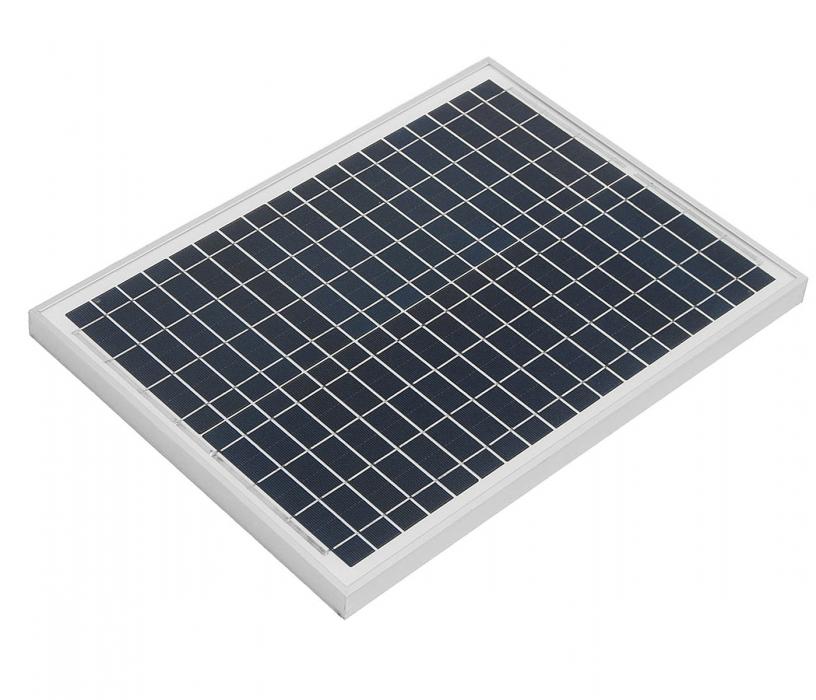

Name:20W 12V poly solar panel
Model No.:KL20W-36P
Dimensions:490mm x 350mm x 28mm
Weight:2.2kg
Open Circuit Voltage:21.4V
Short Circuit Current:1.32A
Max Power Voltage:16.94V
Max System Current:1.18A
Max System Voltage:300VDC
Number of Cells:36
Power Allowance Range:5
Operating Temperature:-40~+85°C
Connection+Cable:No cable
Standard Test Conditions (STC):AM1.5, 1000W/m², Cells Temperature 25°C

Product Description

An ideal 12v battery charger for larger batteries and systems where there is a constant drain of power


Our new generation monocrystalline solar panels are much smaller and thinner than our previous models. Now providing higher efficiency at a better price! The manufacturing process for this range uses 36 pieces of 156mm x 156mm A-grade solar cells cut into defined sizes.

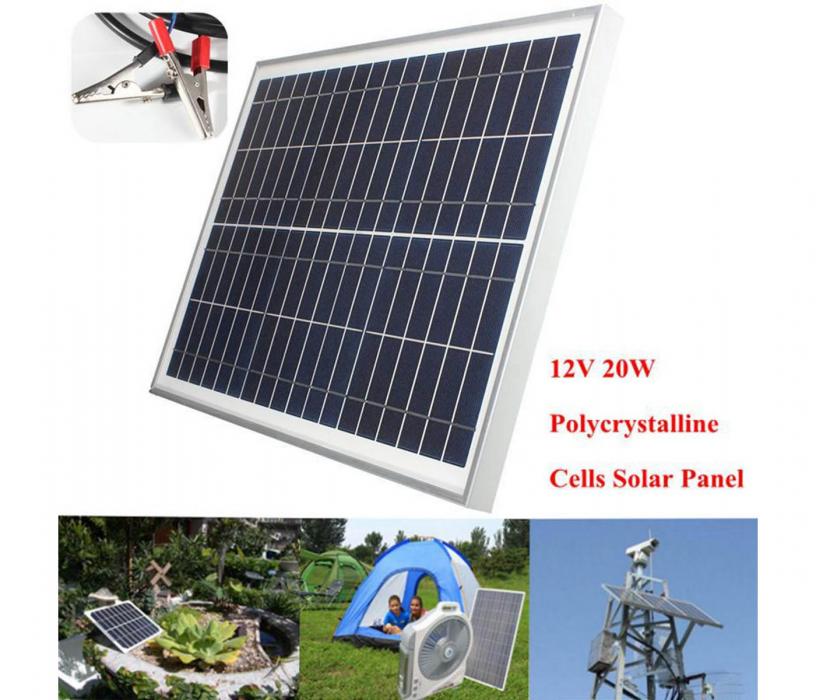

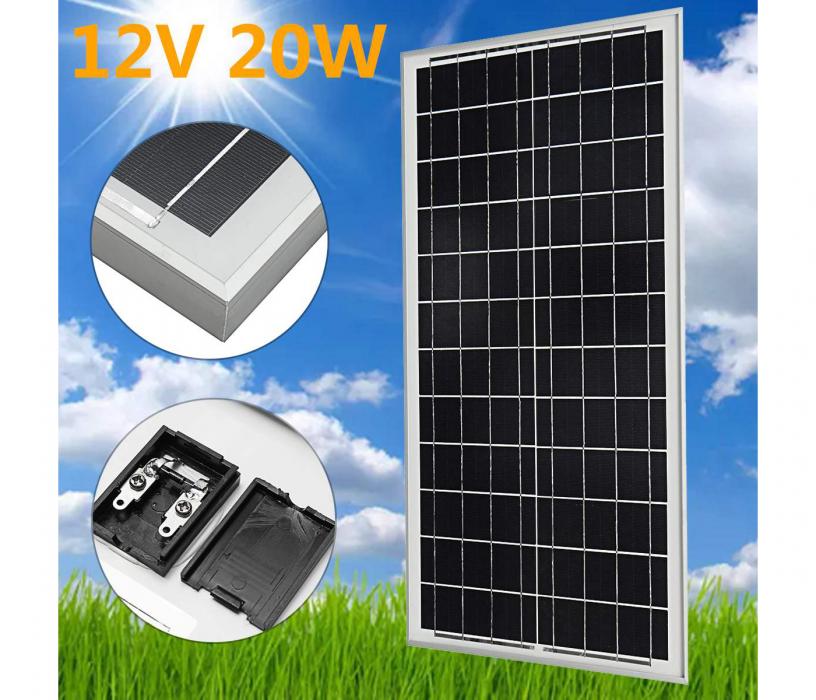

This high quality 12v 20w poly Solar Panel works in both sunny and overcast conditions and is fully weatherproof.

it could comes supplied with 1/2/5 meters of cable, a blocking diode to prevent reverse charging and crocodile clips for easy battery connection.


Top Material

10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output


High-quality

TUV,CE,RoHS certificate

High conversion efficiency

Low power tolerance of 0~+3% ;Low degradation under light exposure ;Can withstand high wind-pressure,snow load and extreme temperature ;Passing below test

IEC/EN 61215:2005;

IEC/EN 61730-1 A2

IEC/EN 61730-2 A1
