Product Center

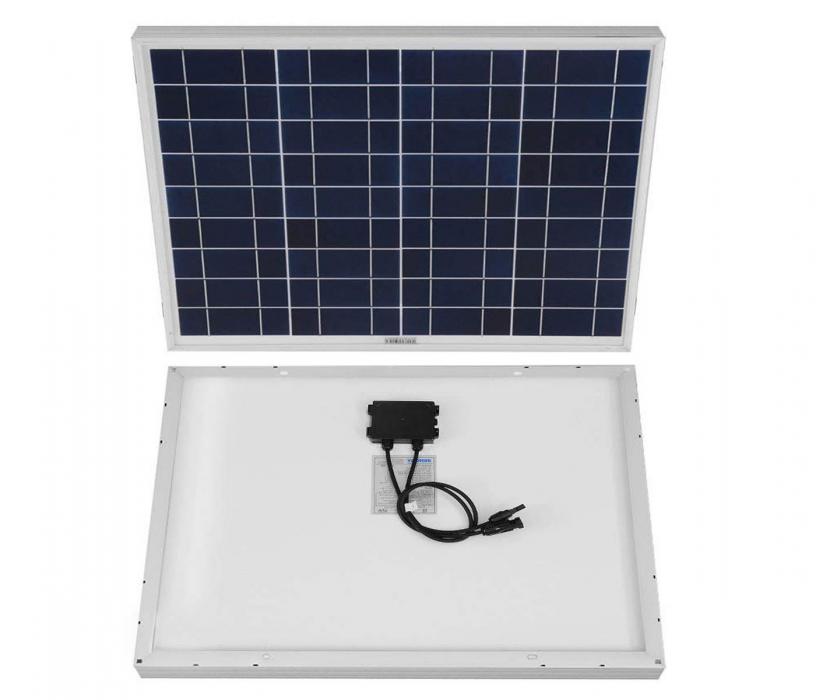

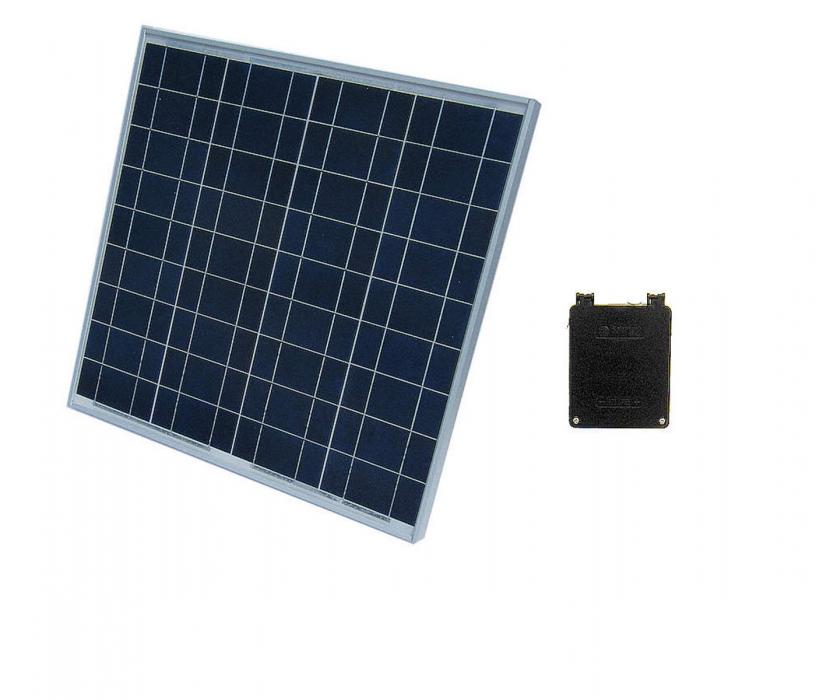

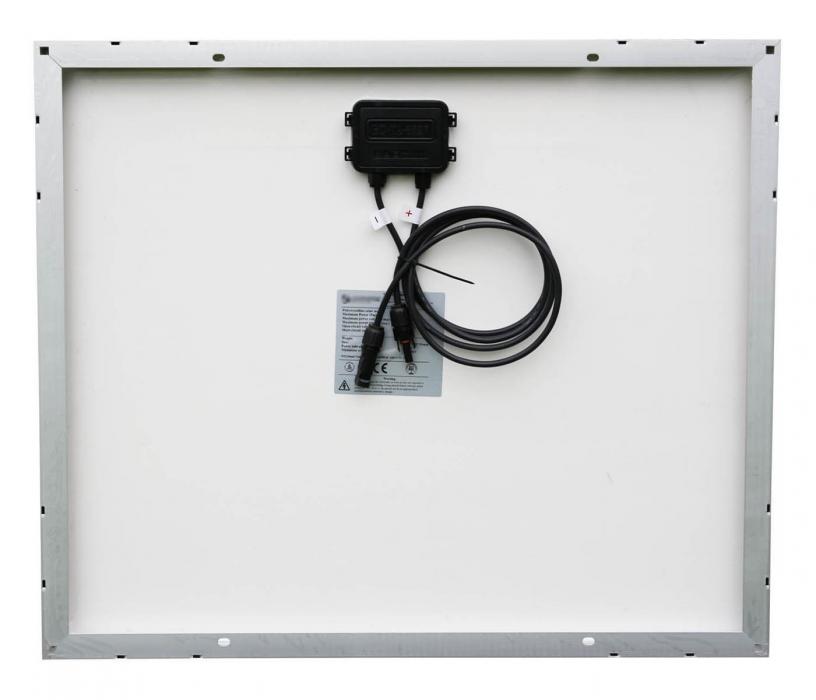

Name:50W 12V poly solar panel 670x540
Model No.:KL50W-36P
Dimensions:670mm x 540mm x 35mm
Weight:4.2kg
Open Circuit Voltage:22.7V
Short Circuit Current:3.14A
Max Power Voltage:17.6V
Max System Current:2.84A
Max System Voltage:300VDC
Number of Cells:36
Power Allowance Range:3
Operating Temperature:-40~+85°C
Connection+Cable:No cable
Standard Test Conditions (STC):AM1.5, 1000W/m², Cells Temperature 25°C

Product Description

The 50W poly solar panel made using Grade A solar cells (as with all of our panels) guarantees high efficiency and a long operative life. 50 watts is enough power in the summer to keep your battery firmly topped up even with moderate use.

An ideal 12v battery charger for larger batteries and systems where there is a constant drain of power


50w is enough power in the summer to keep your battery firmly topped up even with moderate use. Caravans and small motorhomes tend to find the 50w 12v solar panel the ideal choice as it has a good balance of power, able to generate enough energy for a week long stay,  yet still being small enough to pack away. And with todays prices these are a great addition.


This high quality 12v 50w Solar Panel works in both sunny and overcast conditions and is fully weatherproof.

it could comes supplied with 1/2/5 meters of cable, a blocking diode to prevent reverse charging and crocodile clips for easy battery connection.


Top Material

10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output


High-quality

TUV,CE,RoHS certificate

High conversion efficiency

Low power tolerance of 0~+3% ;Low degradation under light exposure ;Can withstand high wind-pressure,snow load and extreme temperature ;Passing below test

IEC/EN 61215:2005;

IEC/EN 61730-1 A2

IEC/EN 61730-2 A1
