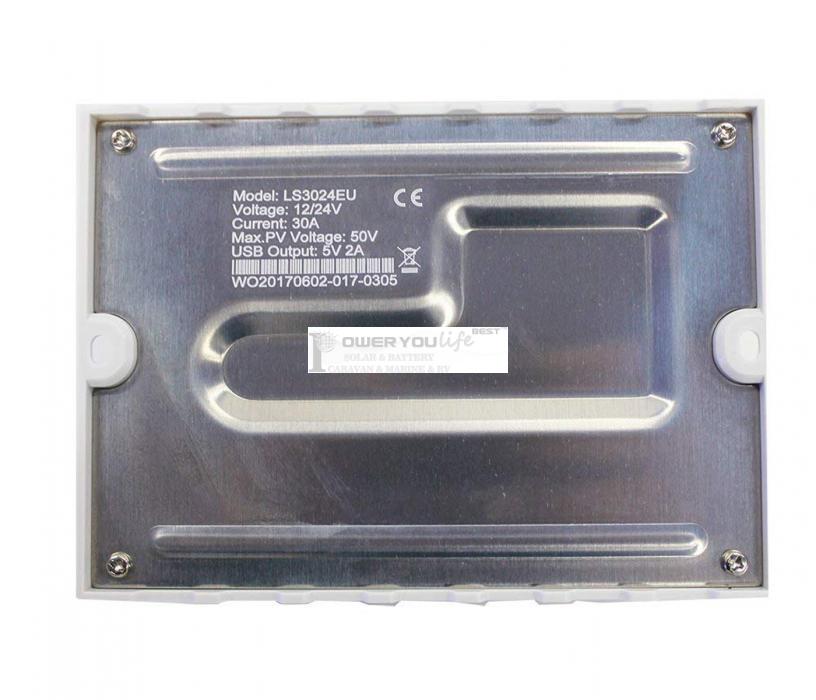

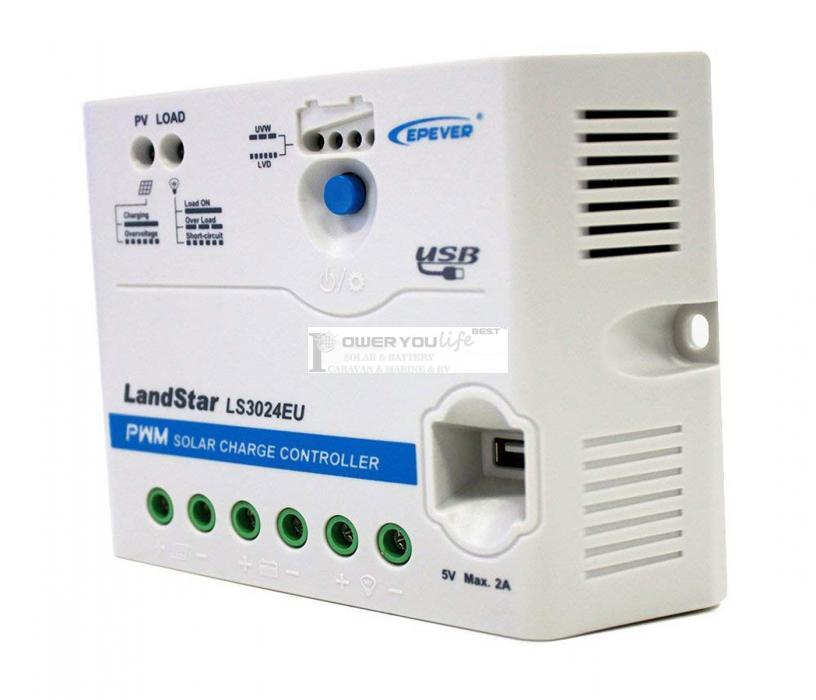

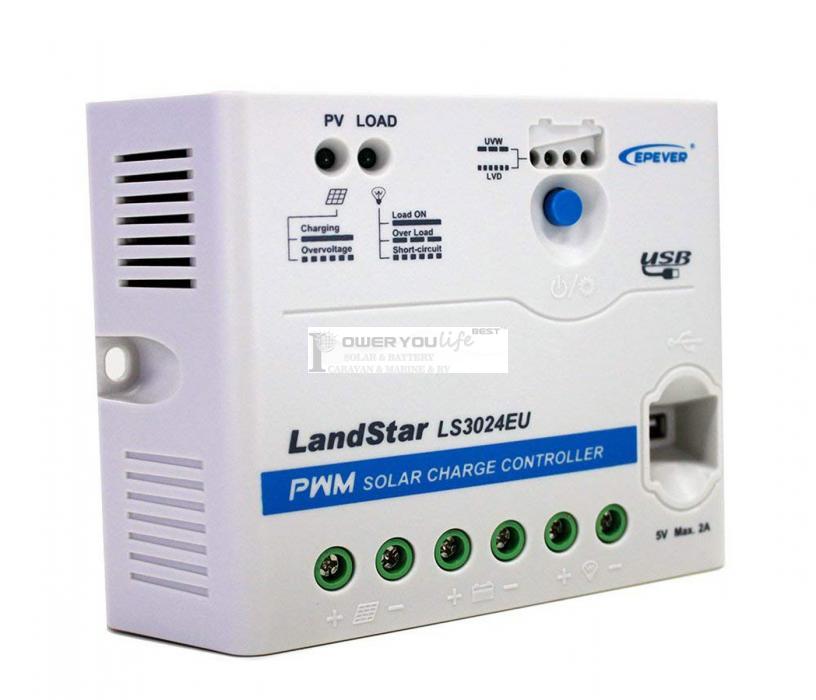

Name: | LS3024EU 30A 12V 24V auto work PWM Landstar Solar Charge Controller with 5VDC 2A USB Output charge |
---|---|
Model No.: | LS2024EU |
Nominal system voltage: | 12/24V auto work |
Battery input voltage range: | 8~32V |
Rated charge/discharge current: | 30A |
Max. PV open circuit voltage: | 30V |
Overall dimension: | 148x106.8x43.7 |
Terminals: | 8AWG(10mm2) |
Net weight: | 0.29kg |
Enclosure: | IP20 |
Working environment temperature: | -35℃~+55℃ |
Humidity range: | ≤95 (N.C.) |
Product Description
LS-EU economic solar controller is new member of Land Star family and ideal for small solar system especially home system. Based on the LS-E series, LS-EU series add a +5V/2.0A USB terminal output which can charge mobile phone, fans and other electronic device.
Features:
·High efficient Series PWM charging, increase battery lifetime and improve solar system performance
·Use MOSFET as electronic switch, without any mechanical switch
·Intuitive LED indicators showing battery voltage status
·Gel, Sealed, and Flooded battery type optional
·Manual control the output of the load
·Temperature compensation, correct charging and discharging parameters automatically
·Humanized Key, more comfortable and convenient
·Industrial grade design
Electronic Protections:
·Load overload protection
·Load short circuit protection
·Battery over discharge protection
·Battery reverse polarity protection
Equalize charging voltage | Gel: ----, Sealed: 14.6V, Flooded: 14.8V | ||||
Boost charging voltage | Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V | ||||
Float charging voltage | Gel / Sealed / Flooded:13.8V | ||||
Low voltage( reconnect) | Gel / Sealed / Flooded:12.6V | ||||
Low voltage (disconnect ) | Gel / Sealed / Flooded:11.1V | ||||
USB output port | 5VDC/1.2A | ||||
Charge circuit voltage drop | ≤0.13V | ||||
Discharge circuit voltage drop | ≤0.17V | ||||
Self-consumption | ≤5mA(12V); ≤7mA (24V) | ||||
Temp. compensation | -5mV/℃/2V | ||||
Enclosure | IP20 | ||||
Grounding | Common Positive |
