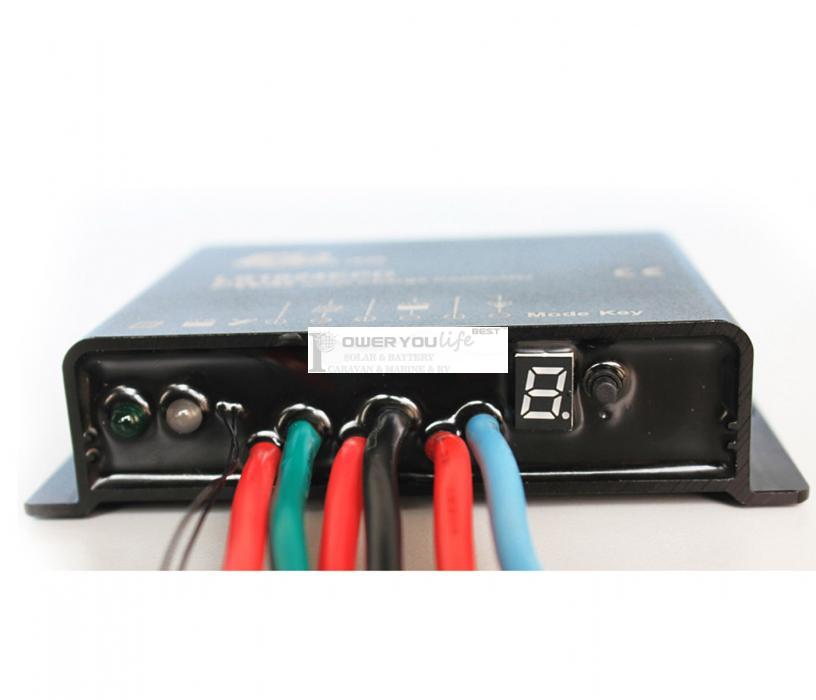

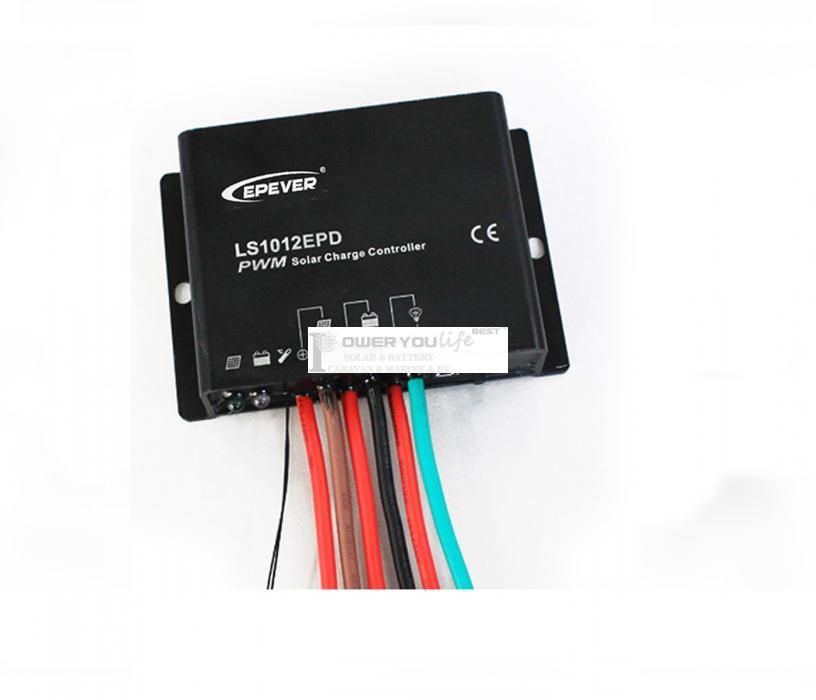

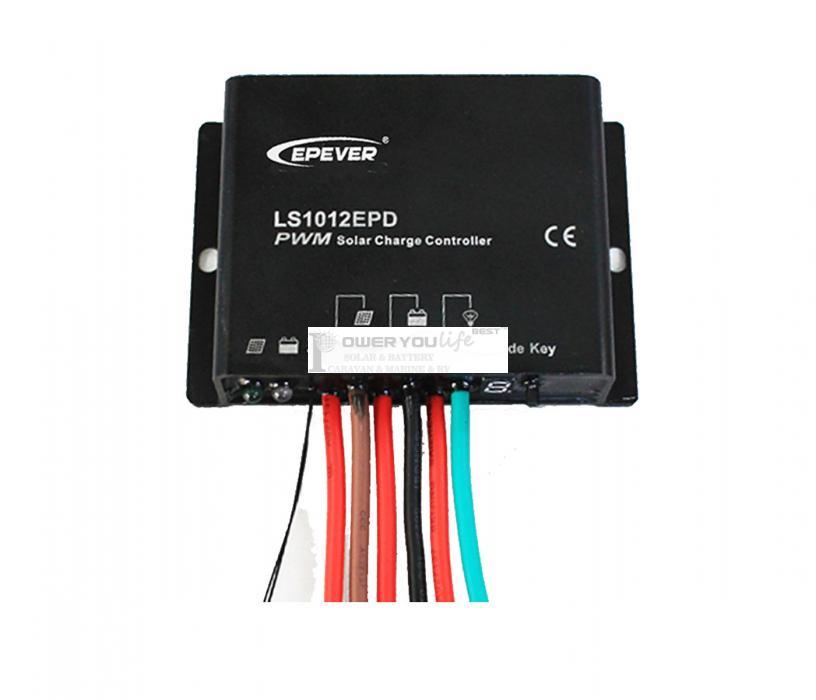

Name: | LS1012EPD ( 10A, 12V) Solar Charge Controller |
---|---|
Model No.: | LS1012EPD |
Nominal system voltage: | 12V |
Max. PV input voltage: | 30V |
Rated current: | 10A |
Power cable: | 4.0mm2 |
Net weight: | 408g |
Overall dimension: | 108.5mm×75mm×25.6mm |
Product Description
LS-EPD series solar charge controller adopts the most advanced digital technique and operates fully automatically. It is ideal for extreme environments with corrosion, dust, water etc and has various unique functions:
Electronic protection: Over charging, over discharging, overload, short circuit and reverse protection of solar module
Features :
● High efficient Series PWM charging, increase the battery lifetime
● Widely used, automatically recognize day/night
● Battery LED indicate battery status
● Industrial design, wide application range
● Digital tube menu, only one key solve all setting simply
● Intelligent timer function with 1~13 hours option
● IP67 protection
Equalize charging voltage* | 14.8V(12V);29.6V(24V) | ||
Boost charging voltage* | 14.4V(12V);28.8V(24V) | ||
Float charging voltage* | 13.7V(12V);27.4V(24V) | ||
Low voltage reconnect voltage* | 12.6V(12V);25.2V(24V) | ||
Low voltage disconnect voltage* | 11.1 V(12V);22.2V(24V) | ||
Self-consumption | 12V:≤4.58mA;24V:≤6.01mA | ||
Temperature compensation coefficient | -5mV/℃/2V(25℃) | ||
Working temperature | -35℃~+55℃ | ||
Enclosure | IP67 | ||
Overall dimension | 108.5mm×75mm×25.6mm | ||
Mounting dimension | 100.5mm | ||
Mounting hole size | Φ5 |
