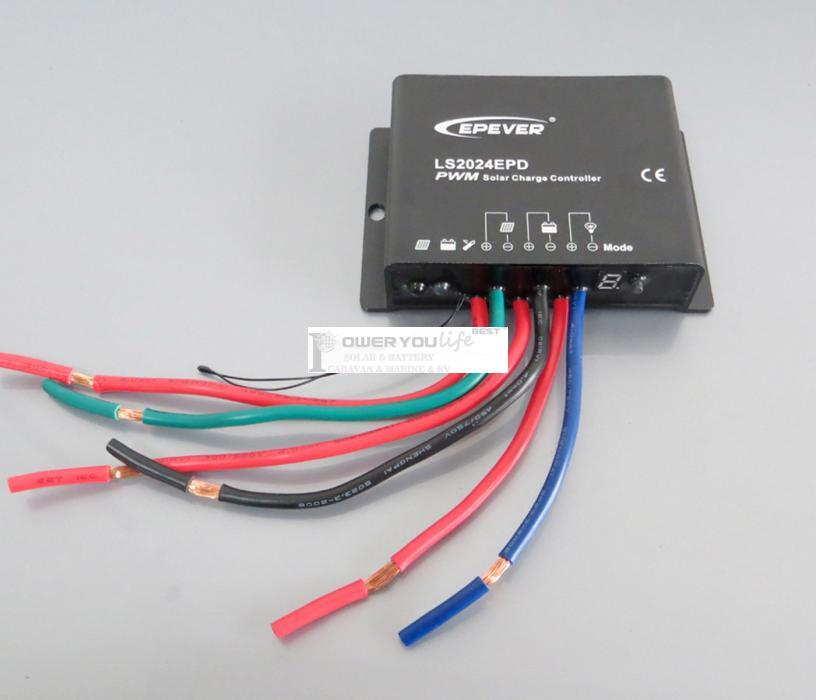

Name:LS2024EPD Solar Charger Controller 10A 12V24V PWM LED Solar Home Lighting System

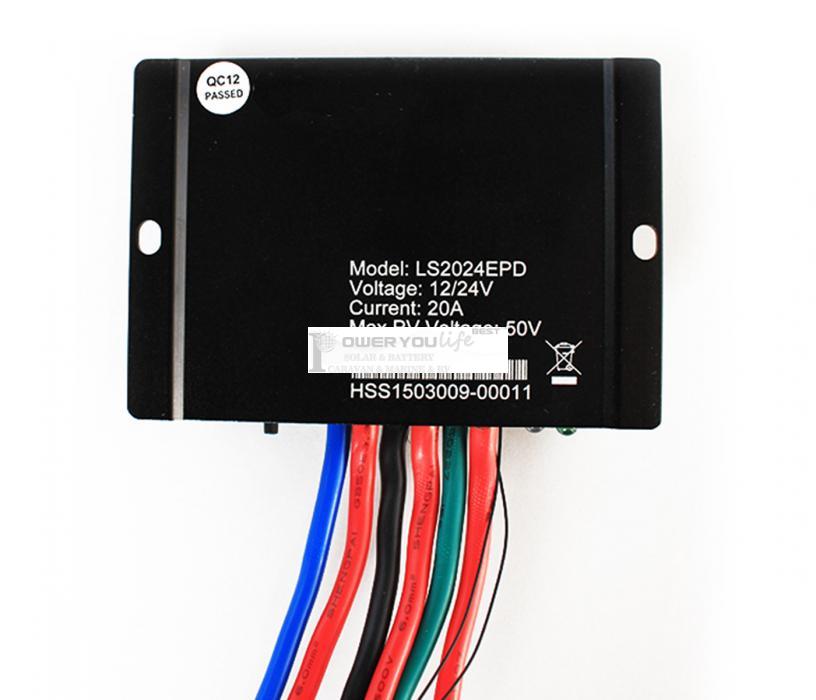

Model No.:LS2024EPD
Nominal system voltage:12/24V auto work
Max. PV input voltage:30V
Rated current:20A
Power cable:4.0mm2
Net weight:408g
Overall dimension:108.5mm×75mm×25.6mm

Product Description

LS-EPD series solar charge controller adopts the most advanced digital technique and operates fully automatically. It is ideal for extreme environments with corrosion, dust, water etc and has various unique functions:

Electronic protection: Over charging, over discharging, overload, short circuit and reverse protection of solar module


Features :

● High efficient Series PWM charging, increase the battery lifetime

● Widely used, automatically recognize day/night

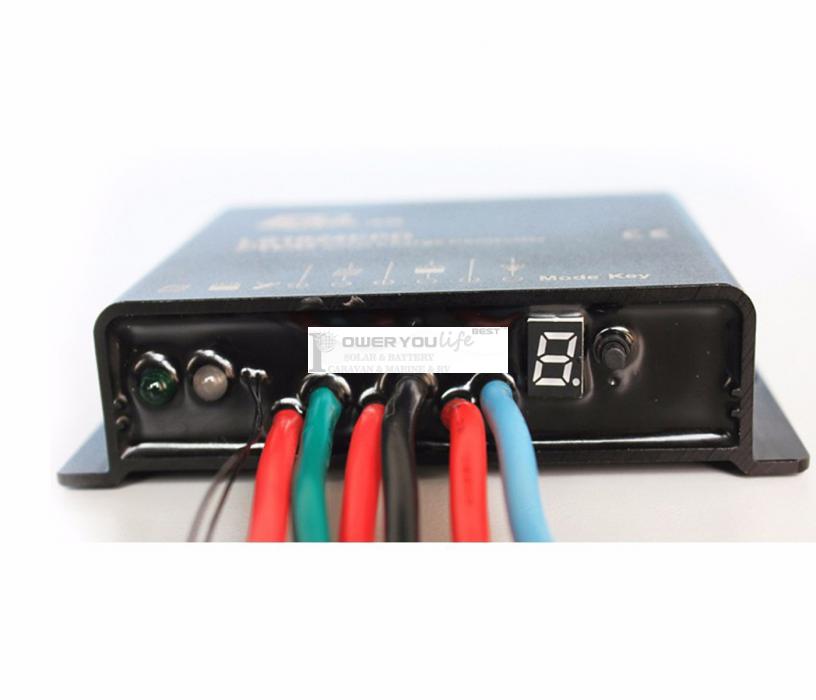

● Battery LED indicate battery status

● Industrial design, wide application range

● Digital tube menu, only one key solve all setting simply

● Intelligent timer function with 1~13 hours option

● IP67 protection


Equalize charging voltage*

14.8V(12V);29.6V(24V)

Boost charging voltage*

14.4V(12V);28.8V(24V)

Float charging voltage*

13.7V(12V);27.4V(24V)

Low voltage reconnect voltage*

12.6V(12V);25.2V(24V)

Low voltage disconnect voltage*

11.1 V(12V);22.2V(24V)

Self-consumption

12V:≤4.58mA;24V:≤6.01mA

Temperature compensation coefficient

-5mV/℃/2V(25℃)

Working temperature

-35℃~+55℃

Enclosure

IP67

Overall dimension

108.5mm×75mm×25.6mm

Mounting dimension

100.5mm

Mounting hole size

Φ5
