Product Center

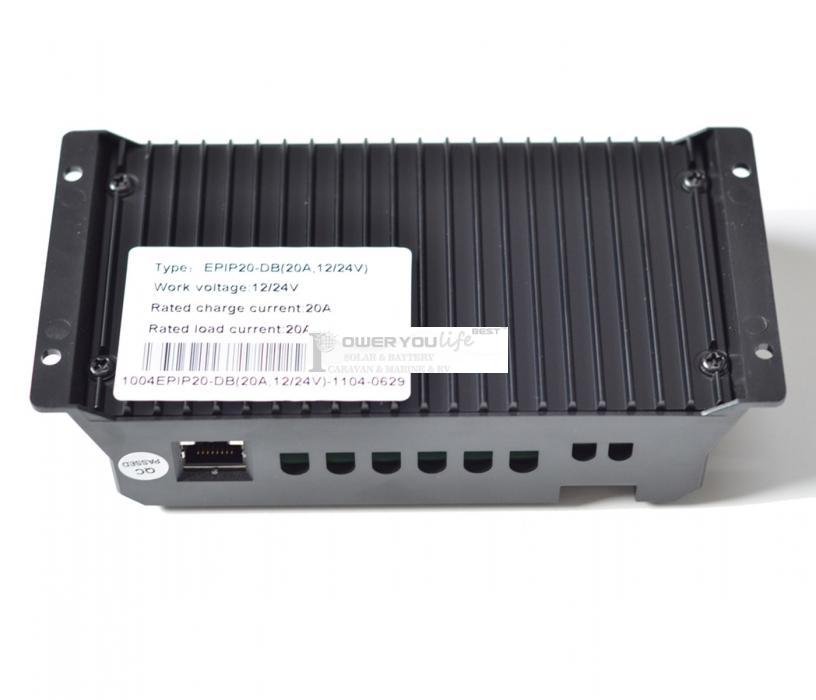

| Name: | EPIPDB-COM 20A 12V/24V Dual two Battery Solar Charge Controller Regulators |
|---|---|
| Model No.: | EPIPDB-COM-20A |
| Nominal system voltage: | 12/24V auto work |
| Max. PV input voltage: | 30V |
| Rated current: | 20A |
| Power cable: | 4.0mm2 |
| Net weight: | 240g |

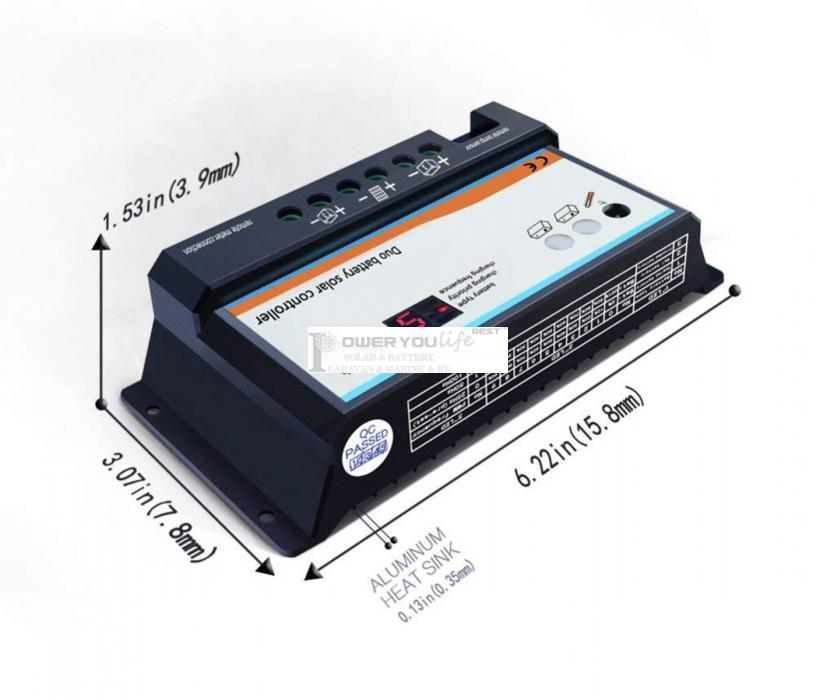

| Overall dimension: | 153×76×37mm |
| Enclosure: | IP30 |
Product Description

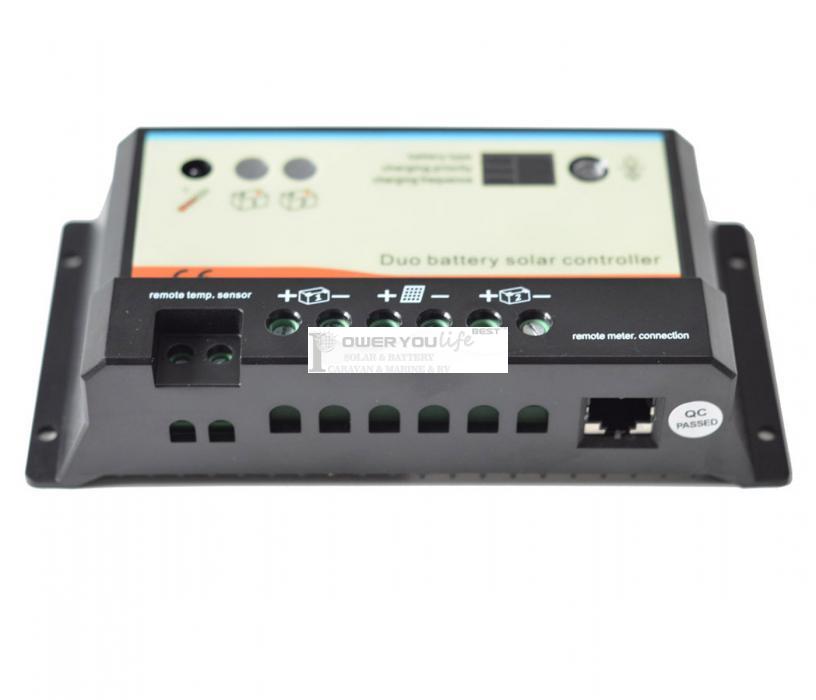

EPIPDB-COM 20A Dual Battery Solar Controller 12V 24V Auto Optional Accessories for RVs, Caravans, Bus, Boats etc
EPIPDB-COM series solar controller can charge two battery banks. No load terminals
Rated Current：20A,
System Voltage：12/24V Auto Work
Features
Two battery charging eliminates the extra cost of two separate solar charging system
Intelligent System Optimum Control
12/24V auto work
Battery type selection
Charging frequency optional
High efficient Series PWM charging
Local external temperature compensation
Remote temperature sensor optional
Use MOSFET as electronic switch, without any mechanical switch
Remote meter MT-1 optional
Electronic protection: over charging, short circuit, battery reverse polarity protection
Application
RVs, Caravans, bus, boats etc.
| Battery voltage parameters (temperature at 25 °C) | |||
|---|---|---|---|
| Battery charging setting | Sealed | Flooded | Gel |
| Equalize charging voltage | 14.4 V;x2/24V | 14.6V;x2/24V | 14.8V;x2/24V |
| Boost charging voltage | 14.2V;x2/24V | 14.4V;x2/24V | 14.6V;x2/24V |
| Float charging voltage | 13.7V;x2/24V | 13.7V;x2/24V | 13.7V;x2/24V |
| Max. solar voltage | 30V(12V system),55V(24V system) | ||
| Battery voltage range | 8-15V(12V system),8-30V(24V system) | ||
| Self-consumption | 4mA at night, 10mA at charging | ||
| Meterbus connection | 8-pin RJ-45 | ||
| Temp. compensation | -5mv/°C/2V | ||
