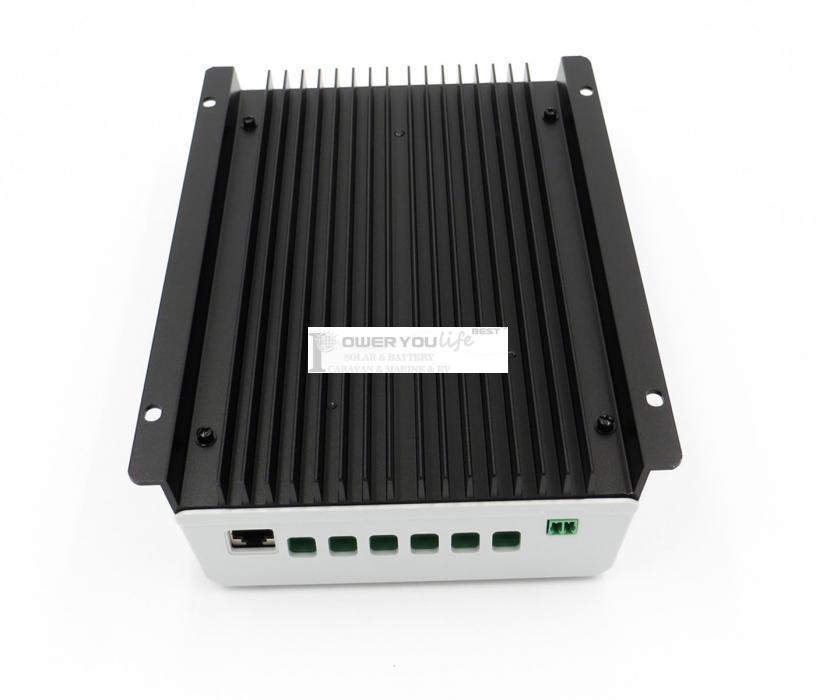

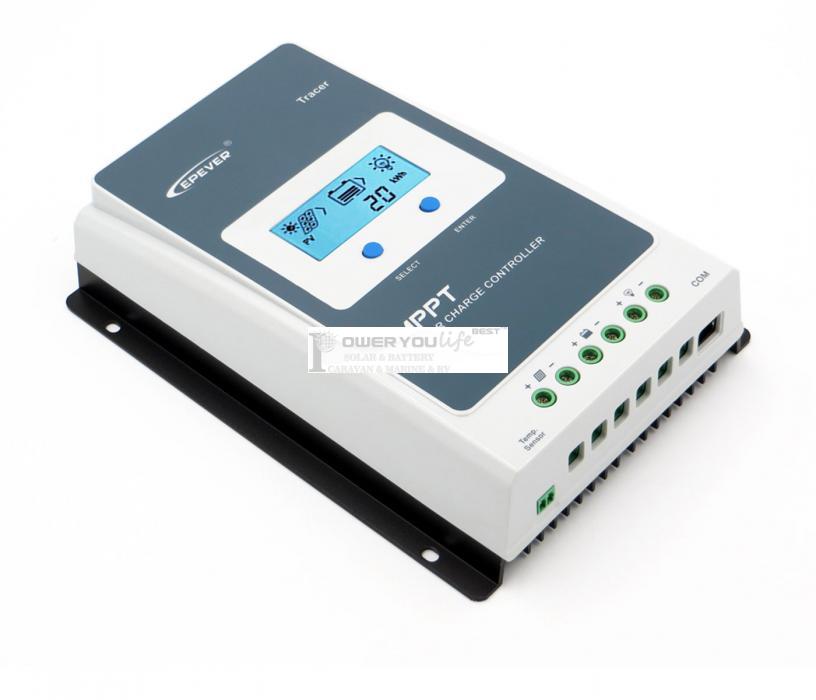

| Name: | Tracer2210AN 20A MPPT Solar Charge Controller |
|---|---|
| Model No.: | Tracer 2210AN |
| System nominal voltage: | 12/24VDC Auto |
| Rated charge current: | 20A |
| Rated discharge current: | 20A |
| Battery voltage range: | 8-32V |
| Max. PV open circuit voltage: | 100V |
| MPP voltage range: | (Battery voltage +2V)～36V |
| Max. PV input power: | 260W/12V,520W/24 V |
| Self-consumption: | ≤12mA |
| Discharge circuit voltage drop: | ≤0.23V |
| Temperature compensate coefficient: | -3mV/℃/2V (Default) |
| Grounding: | Common negative |
| RS485 interface: | 5VDC/100mA |
Product Description
Features:
• Advanced MPPT technology, with efficiency no less than 99.5%
• Ultra-fast tracking speed and guaranteed tracking efficiency
• Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time
• Wide MPP operating voltage range
• High quality components, perfecting system performance, with maximum conversion efficiency of 98%
• Accurate recognition and tracking of multiple-peaks maximum power point
• International famous brands of ST and IR's components of high quality and low failure rate are used which can ensure the product’s service life
• Charging power and current limitation function
Protection function:
• PV Over Current/power
• PV Short Circuit
• PV ReversePolarity
• Night Reverse Charging
• Battery Reverse Polarity
• Battery Over Voltage
• Battery Over Discharge
• Battery Overheating
• ControllerOverheating
• Lithium Battery Low Temperature
• Load Short Circuit
• Load Overload
•TVS High Voltage Transients
Remote Meter MT-50 is avaliable for the Tracer solar controller,click here to check more!
