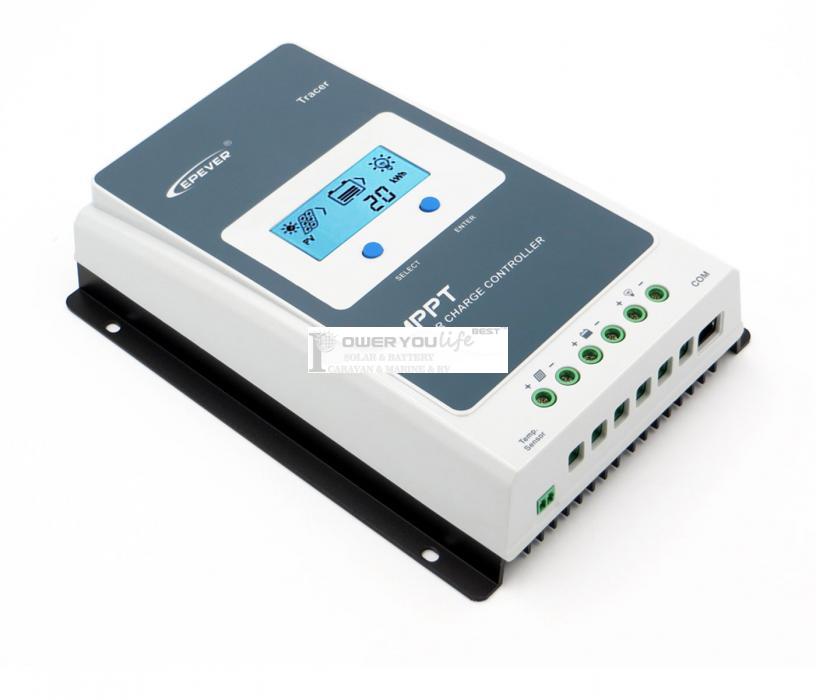

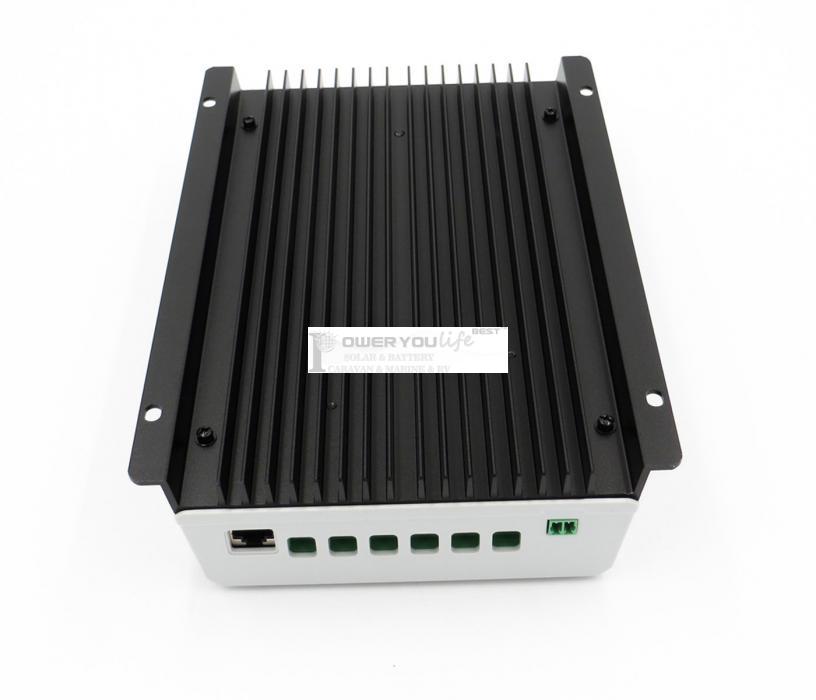

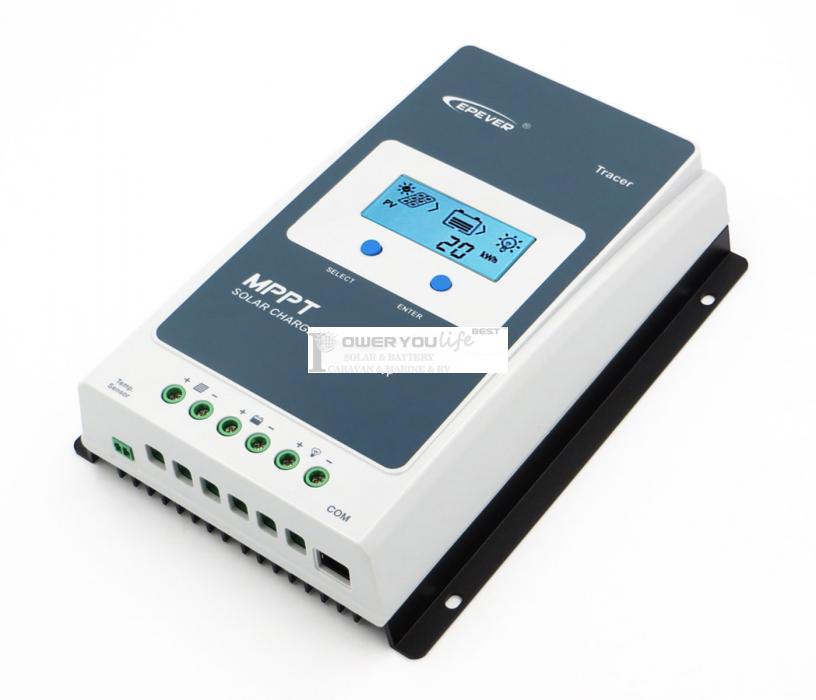

Name:Tracer1206AN Tracer1210AN 10A MPPT Solar Charge Controller
Model No.:Tracer 1206AN
System nominal voltage:12/24VDC Auto
Rated charge current:10A
Rated discharge current:10A
Battery voltage range:8-32V
Max. PV open circuit voltage:60V
MPP voltage range:(Battery voltage +2V)~36V
Max. PV input power:130W/12V,260W/24V
Self-consumption:≤12mA
Discharge circuit voltage drop:≤0.23V
Temperature compensate coefficient:-3mV/℃/2V (Default)
Grounding:Common negative
RS485 interface:5VDC/100mA

Product Description

Features:

• Advanced MPPT technology, with efficiency no less than 99.5%
• Ultra-fast tracking speed and guaranteed tracking efficiency
• Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time
• Wide MPP operating voltage range
• High quality components, perfecting system  performance, with maximum conversion efficiency  of 98%
• Accurate recognition and tracking of multiple-peaks  maximum power point
• International famous brands of ST and IR's components of high quality and low failure rate are used     which can ensure the product’s service life
• Charging power and current limitation function

Protection function:

• PV Over Current/power
• PV Short Circuit
• PV ReversePolarity
• Night Reverse Charging
• Battery Reverse Polarity
• Battery Over Voltage
• Battery Over Discharge
• Battery Overheating
• ControllerOverheating
• Lithium Battery Low Temperature
• Load Short Circuit
• Load Overload
•TVS High Voltage Transients

Remote Meter MT-50 is avaliable for the Tracer solar controller,click here to check more!
