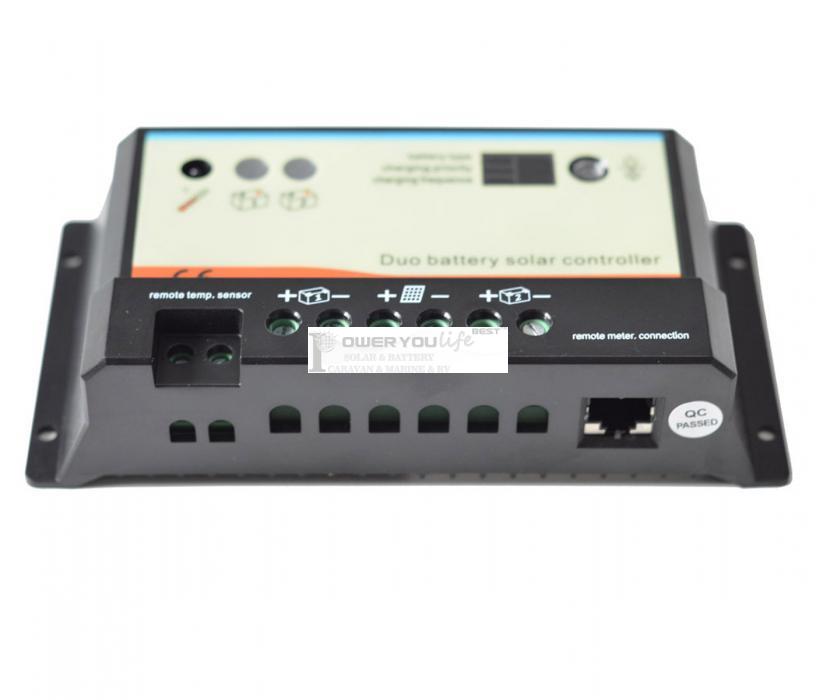

Name:EPIPDB-COM 10A 12V/24V Dual two Battery Solar Charge Controller Regulators
Model No.:EPIPDB-COM-10A
Nominal system voltage:12/24V auto work
Max. PV input voltage:30V
Rated current:10A
Power cable:4.0mm2
Net weight:240g

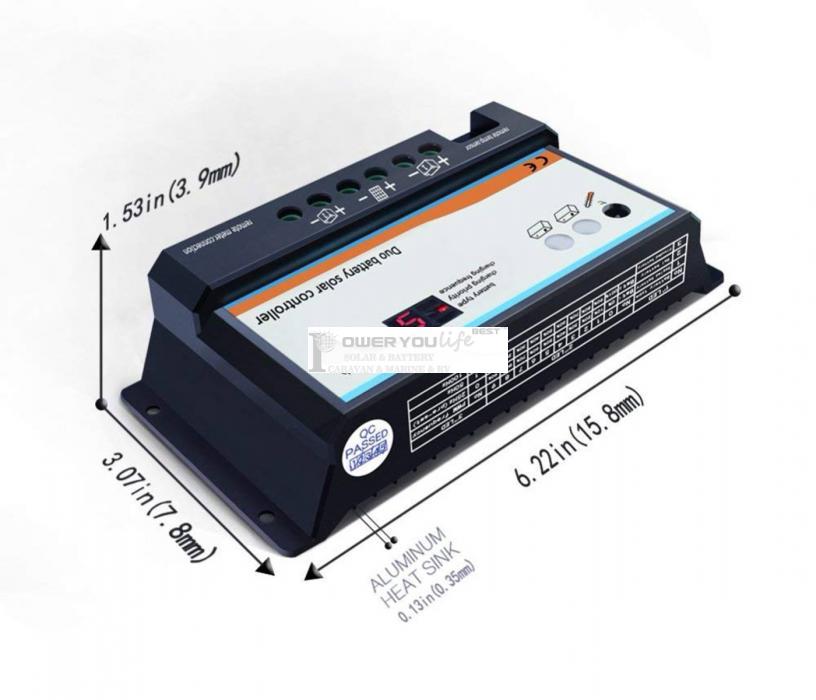

Overall dimension:153×76×37mm
Enclosure:IP30

Product Description

EPIPDB-COM 10A Dual Battery Solar Controller 12V 24V Auto Optional Accessories for RVs, Caravans, Bus, Boats etc

EPIPDB-COM series solar controller can charge two battery banks. No load terminals

Rated Current:10A,

System Voltage:12/24V Auto Work



Features

  • Two battery charging eliminates the extra cost of two separate solar charging system

  • Intelligent System Optimum Control

  • 12/24V auto work

  • Battery type selection

  • Charging frequency optional

  • High efficient Series PWM charging

  • Local external temperature compensation

  • Remote temperature sensor optional

  • Use MOSFET as electronic switch, without any mechanical switch

  • Remote meter MT-1 optional

  • Electronic protection: over charging, short circuit, battery reverse polarity protection



Application

RVs, Caravans, bus, boats etc.


Battery voltage parameters (temperature at 25 °C)


Battery charging settingSealedFloodedGel
Equalize charging voltage14.4 V;x2/24V14.6V;x2/24V14.8V;x2/24V
Boost charging voltage14.2V;x2/24V14.4V;x2/24V14.6V;x2/24V
Float charging voltage13.7V;x2/24V13.7V;x2/24V13.7V;x2/24V
Max. solar voltage30V(12V system),55V(24V system)
Battery voltage range8-15V(12V system),8-30V(24V system)
Self-consumption4mA at night, 10mA at charging
Meterbus connection8-pin RJ-45
Temp. compensation-5mv/°C/2V
