Name: | 30W 12V mono solar panel |
---|---|
Model No.: | KL30W-36M |
Dimensions: | 620mm x 355mm x 28mm |
Weight: | 3.2kg |
Open Circuit Voltage: | 22.5V |
Short Circuit Current: | 1.80A |
Max Power Voltage: | 18.3 |
Max System Current: | 1.64A |
Max System Voltage: | 300VDC |
Number of Cells: | 36 |
Power Allowance Range: | 5 |
Operating Temperature: | -40~+85°C |
Connection+Cable: | No cable |
Standard Test Conditions (STC): | AM1.5, 1000W/m², Cells Temperature 25°C |
Product Description
The 30W mono solar panel made using Grade A solar cells (as with all of our panels) guarantees high efficiency and a long operative life. 30 watts is enough power in the summer to keep your battery firmly topped up even with moderate use.
An ideal 12v battery charger for larger batteries and systems where there is a constant drain of power

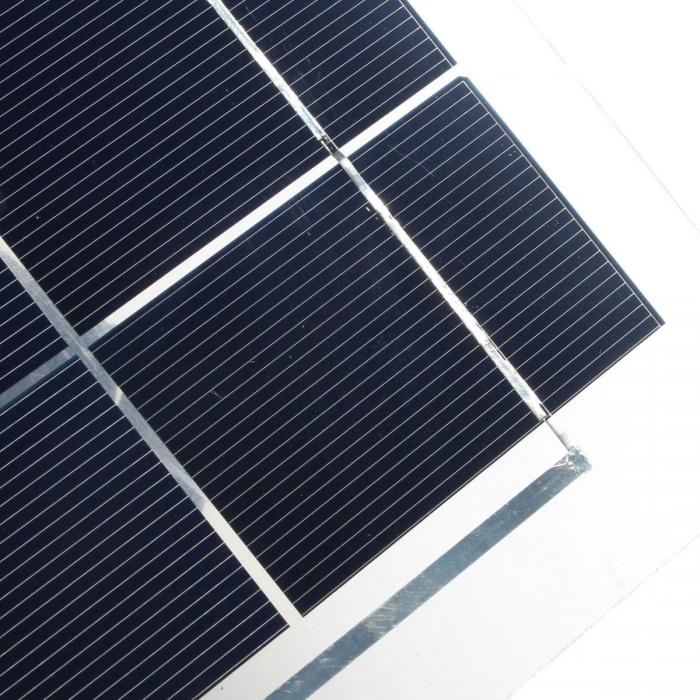

Our new generation monocrystalline solar panels are much smaller and thinner than our previous models. Now providing higher efficiency at a better price! The manufacturing process for this range uses 36 pieces of 156mm x 156mm A-grade solar cells cut into defined sizes with 4/5 grid lines. This process provides excellent performance under low light environments.
This high quality 12v 20w Solar Panel works in both sunny and overcast conditions and is fully weatherproof.
it could comes supplied with 1/2/5 meters of cable, a blocking diode to prevent reverse charging and crocodile clips for easy battery connection.
Top Material
10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output
High-quality
TUV,CE,RoHS certificate
High conversion efficiency
Low power tolerance of 0~+3% ;Low degradation under light exposure ;Can withstand high wind-pressure,snow load and extreme temperature ;Passing below test
IEC/EN 61215:2005;
IEC/EN 61730-1 A2
IEC/EN 61730-2 A1
