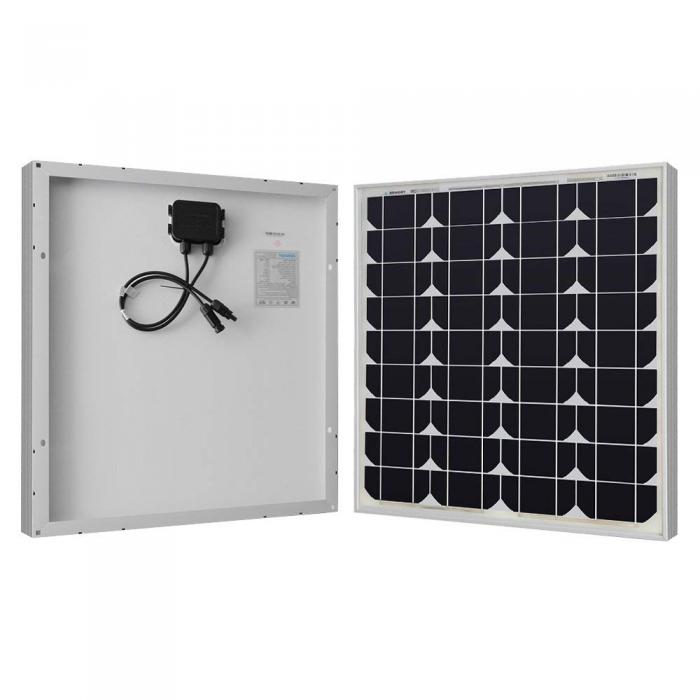

Name: | 50W 12V mono solar panel 640x550 |
---|---|
Model No.: | KL50W-36M |
Dimensions: | 640mm x 550mm x 35mm |
Weight: | 4.2kg |
Open Circuit Voltage: | 22.7V |
Short Circuit Current: | 3.14A |
Max Power Voltage: | 18.3V |
Max System Current: | 2.73A |
Max System Voltage: | 300VDC |
Number of Cells: | 36 |
Power Allowance Range: | 3 |
Operating Temperature: | -40~+85°C |
Connection+Cable: | No cable |
Standard Test Conditions (STC): | AM1.5, 1000W/m², Cells Temperature 25°C |
Product Description
The 50W mono solar panel made using Grade A solar cells (as with all of our panels) guarantees high efficiency and a long operative life. 50 watts is enough power in the summer to keep your battery firmly topped up even with moderate use.
An ideal 12v battery charger for larger batteries and systems where there is a constant drain of power
50w is enough power in the summer to keep your battery firmly topped up even with moderate use. Caravans and small motorhomes tend to find the 50w 12v solar panel the ideal choice as it has a good balance of power, able to generate enough energy for a week long stay, yet still being small enough to pack away. And with todays prices these are a great addition.
This high quality 12v 50w Solar Panel works in both sunny and overcast conditions and is fully weatherproof.
it could comes supplied with 1/2/5 meters of cable, a blocking diode to prevent reverse charging and crocodile clips for easy battery connection.
Top Material
10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output
High-quality
TUV,CE,RoHS certificate
High conversion efficiency
Low power tolerance of 0~+3% ;Low degradation under light exposure ;Can withstand high wind-pressure,snow load and extreme temperature ;Passing below test
IEC/EN 61215:2005;
IEC/EN 61730-1 A2
IEC/EN 61730-2 A1
