Product Center

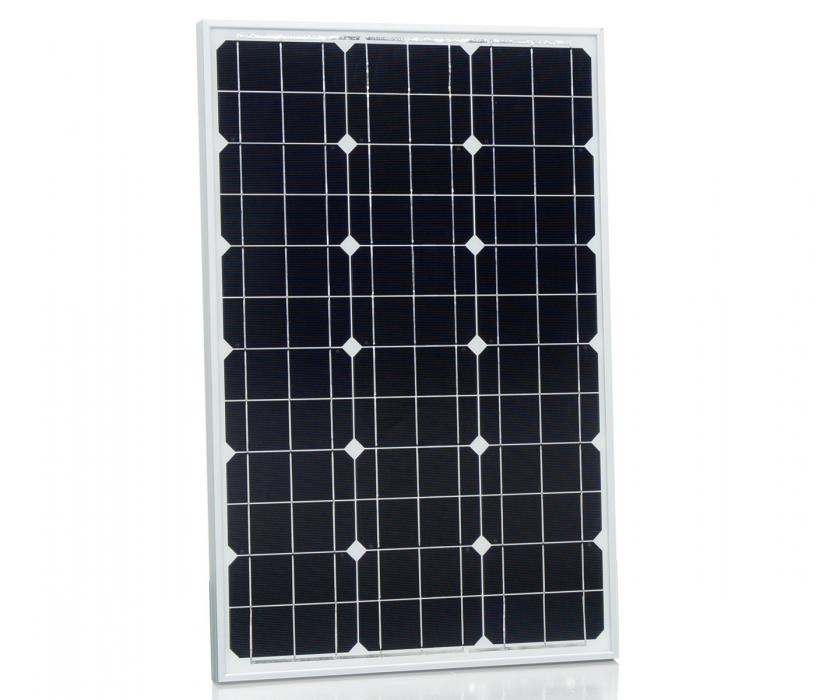

Name:60W 12V NARROW mono solar panel 770×520
Model No.:KL60W-36M-S
Dimensions:770mm x 520mm x 35mm
Weight:6.0g
Open Circuit Voltage:21.5V
Short Circuit Current:3.95A
Max Power Voltage:17.8V
Max System Current:3.50A
Max System Voltage:600VDC
Number of Cells:36
Power Allowance Range:3
Operating Temperature:-40~+85°C

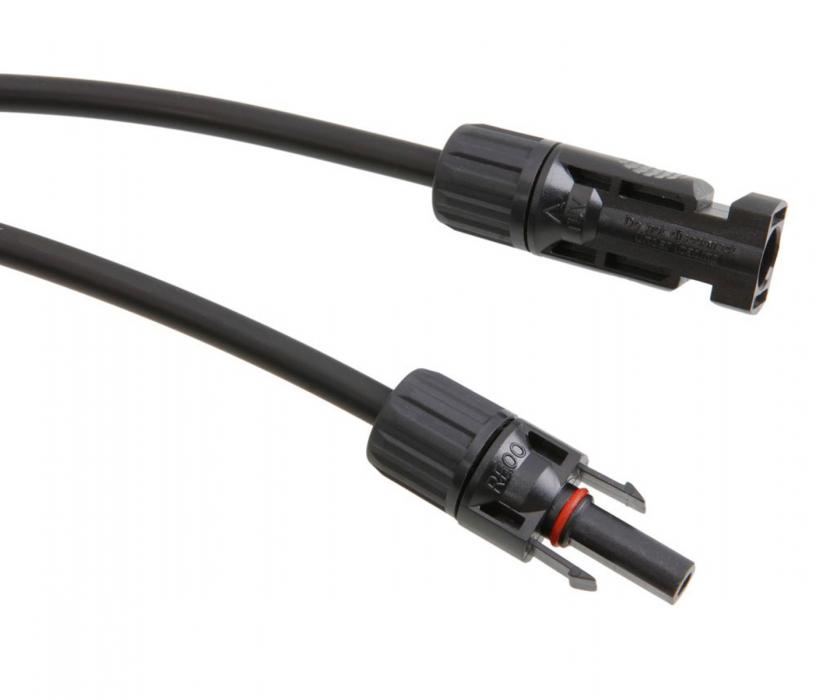

Connection+Cable:MC4, 4mm², 900mm
Standard Test Conditions (STC):AM1.5, 1000W/m², Cells Temperature 25°C

Product Description

Our new generation 12v 60w Monocrystalline Solar Panel are much smaller and thinner than our previous models,made by 36 pieces of 156mm x 156mm A-grade higher efficiency mono solar cells cut into defined sizes with 4/5 grid lines. This process provides excellent performance under low light environments.

With dust reducing power loss and low light resilience, the panels have an excellent module efficiency up to 19.58%, making these solar panels ideal for the traveller.


Ideally suited panel for your motorhome or caravan. It is powerful enough to keep your battery charged over that long weekend away without starting the generator or plugging in to an external source.


This  solar panel is perfect with the ABS solar panel mounts as a solar systems for 4WD, camping, caravanning, boating and recreational activities wherever power is required for lights, TV, camping fridge, pump or other small appliances.


Fully weather proof and professionally made with high quality components.


Top Material

10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output


High-quality

TUV,CE,RoHS certificate

High conversion efficiency

Low power tolerance of 0~+3% ;Low degradation under light exposure ;Can withstand high wind-pressure,snow load and extreme temperature ;Passing below test

IEC/EN 61215:2005;

IEC/EN 61730-1 A2

IEC/EN 61730-2 A1
