|Name:||50W 12V narrow mono solar panel|
|Dimensions:||698mm x 520mm x 35mm|
|Open Circuit Voltage::||22.7V|
|Short Circuit Current:||3.14A|
|Max Power Voltage:||18.3V|
|Max System Current:||2.73A|
|Max System Voltage:||600VDC|
|Number of Cells:||36|
|Power Allowance Range:||3|

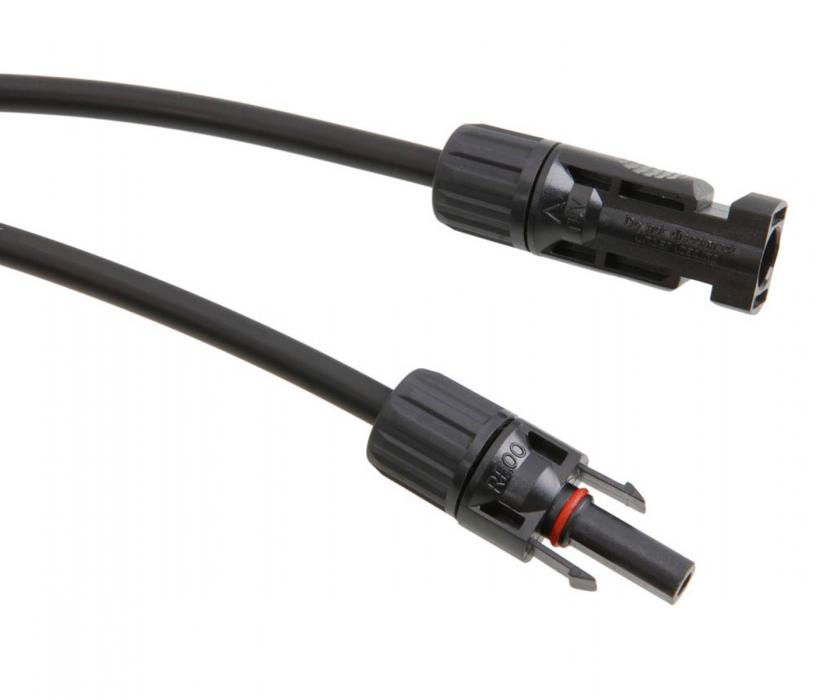

|Connection+Cable:||MC4, 4mm², 900mm|
|Standard Test Conditions (STC):||AM1.5, 1000W/m², Cells Temperature 25°C|
The 50W NARROW Mono Solar Panel is the ideal choice for Caravan/RV/Motor-home/Boat limited roof area.It made using Grade A solar cells (as with all of our panels) guarantees high efficiency and a long operative life.
50w is enough power in the summer to keep your battery firmly topped up even with moderate use. Caravans and small motorhomes tend to find the 50w 12v solar panel the ideal choice as it has a good balance of power, able to generate enough energy for a week long stay, yet still being small enough to pack away.
This high quality 12v 50w Solar Panel works in both sunny and overcast conditions and is fully weatherproof.
10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output
High conversion efficiency
Low power tolerance of 0~+3% ;Low degradation under light exposure ;Can withstand high wind-pressure,snow load and extreme temperature ;Passing below test
IEC/EN 61730-1 A2
IEC/EN 61730-2 A1
