Name: | 100W 12V mono solar panel 1200×550 |
---|---|
Model No.: | KL100W-36M |
Dimensions: | 1200mm x 550mm x 35mm |
Weight: | 8.5kg |
Open Circuit Voltage: | 21.5V |
Short Circuit Current: | 6.37A |
Max Power Voltage: | 17.5V |
Max System Current: | 5.71A |
Max System Voltage: | 800VDC |
Number of Cells: | 36 |
Power Allowance Range: | 5 |
Operating Temperature: | -40~+85°C |

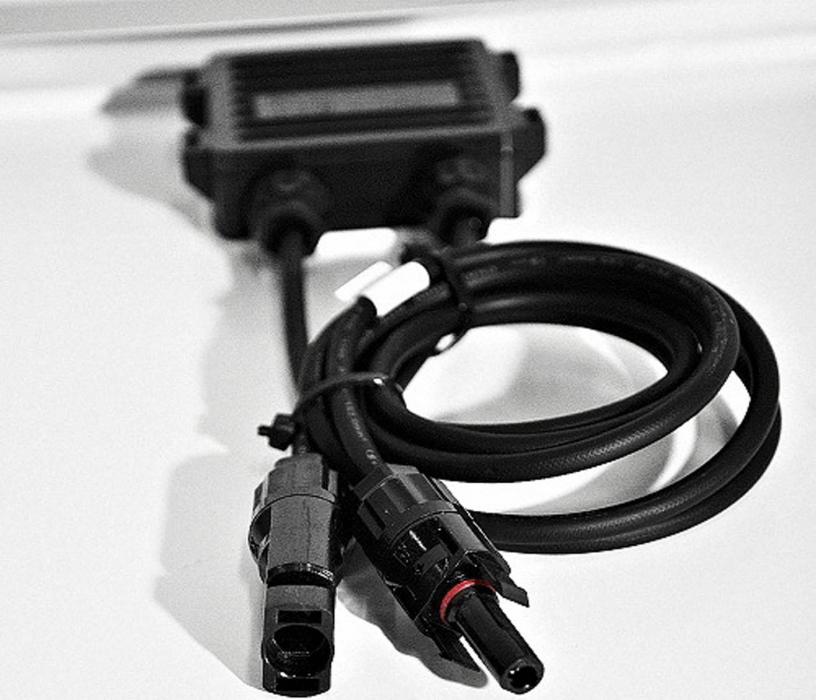

Connection+Cable: | MC4, 4mm², 900mm |
Standard Test Conditions (STC): | AM1.5, 1000W/m², Cells Temperature 25°C |
Product Description
Our high quality monocrystalline 12v 100w solar panel works in both sunny and overcast conditions. Ideally suited for a motorhome or large caravan. This 12v 100w solar panel is powerful enough to keep your battery charged over long periods away without starting the generator or plugging in to an external source.
Ideally suited panel for your motorhome or caravan. It is powerful enough to keep your battery charged over that long weekend away without starting the generator or plugging in to an external source.
This solar panel is perfect with the ABS solar panel mounts as a solar systems for 4WD, camping, caravanning, boating and recreational activities wherever power is required for lights, TV, camping fridge, pump or other small appliances.
Top Material
10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output
High-quality
TUV,CE,RoHS certificate
High conversion efficiency
Low power tolerance of 0~+3% ;Low degradation under light exposure ;Can withstand high wind-pressure,snow load and extreme temperature ;Passing below test
IEC/EN 61215:2005;
IEC/EN 61730-1 A2
IEC/EN 61730-2 A1
